PRODUCT SPECIFICATION:

Operating Voltage: DC12V/24V

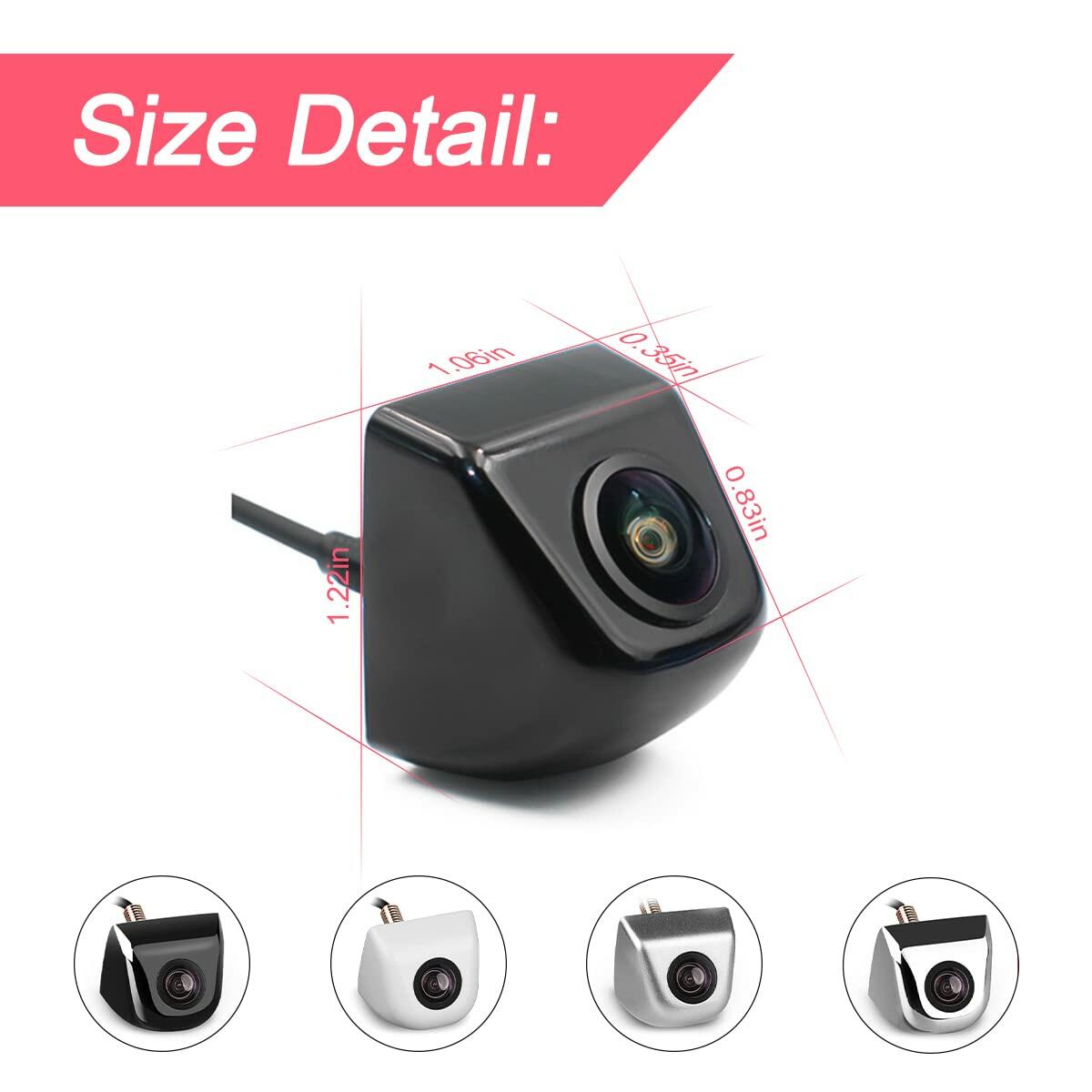

Dimension: 1.25 x 1.37 x 1.06" (L x W x H)

Colors: Black, White, Chrome, Silver (4 Colors for you to choose.)

PACKAGE CONTENT:

1 x Universal Backup Camera

1 x 21.3FT Video Cable

1 x 5FT Power Cable

1 x Product Manual & Installation Diagram

INSTALLATION STEPS

1. Install the camera on a flat surface(parallel to the ground), secure the nuts and bolts in place.

2. Connect the power cable to reversing light power supply.

3. Connect 20ft extension cable of backup camera to the head unit or other monitors of your car.

4.Start your car and gear on reverse mode to test the camera.

5. Re-install the head unit/other monitors.

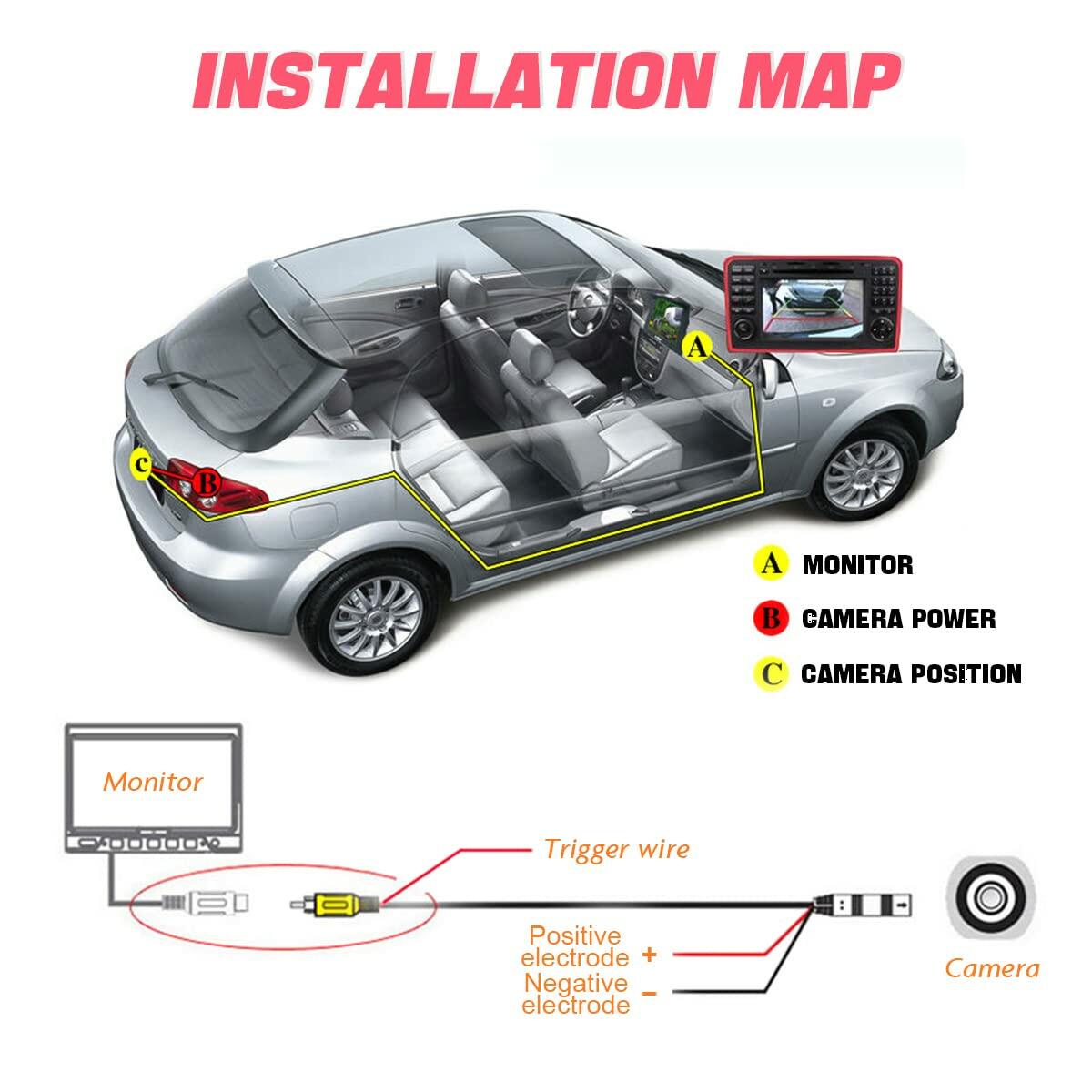

NOTE: Installation method is shown in the photo, please install backup camera correctly for better use.

ATTENTION:

* Our 4-pin cameras cannot be connected with any monitors directly without using power cable.

* If the image on the screen is blurry, flickering, or horizontal/vertical stripes appear, please check all power and video connections. Use different ground points (iron parts) as far as possible and wrap the power plug and video plug with insulation tape to isolate interference. If these problems persists, please order a 12V DC power adapter filter rectifiter to solve problems.

* Before routing, if there's no image on the screen, in addition to checking the camera, please check the display settings as well. You can use another devices with a RCA connector, such as TV to check if the camera works properly.

* 12-Month warranty for every order, any questions and concerns, feel free to get in touch with us for further assistance!

FEATURES

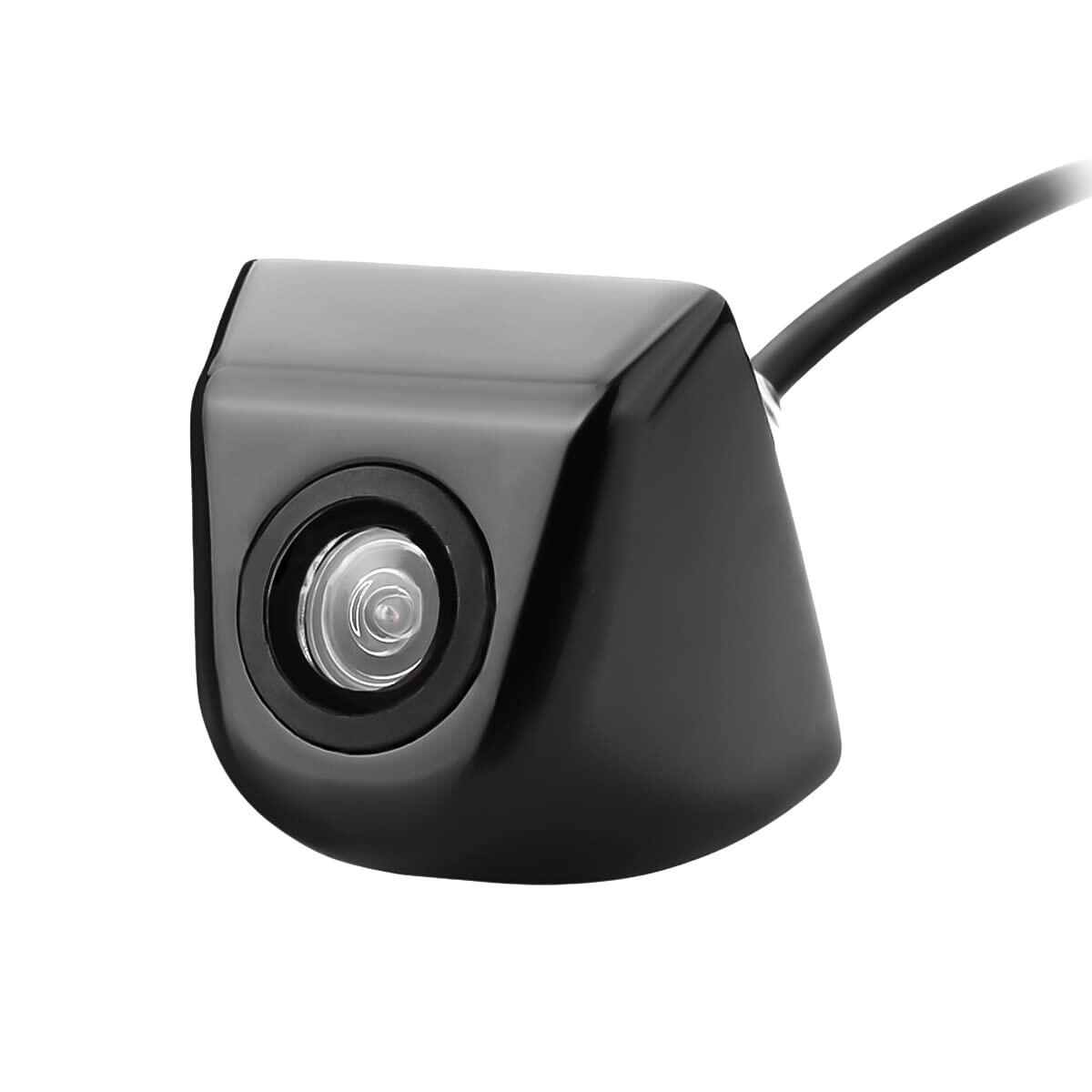

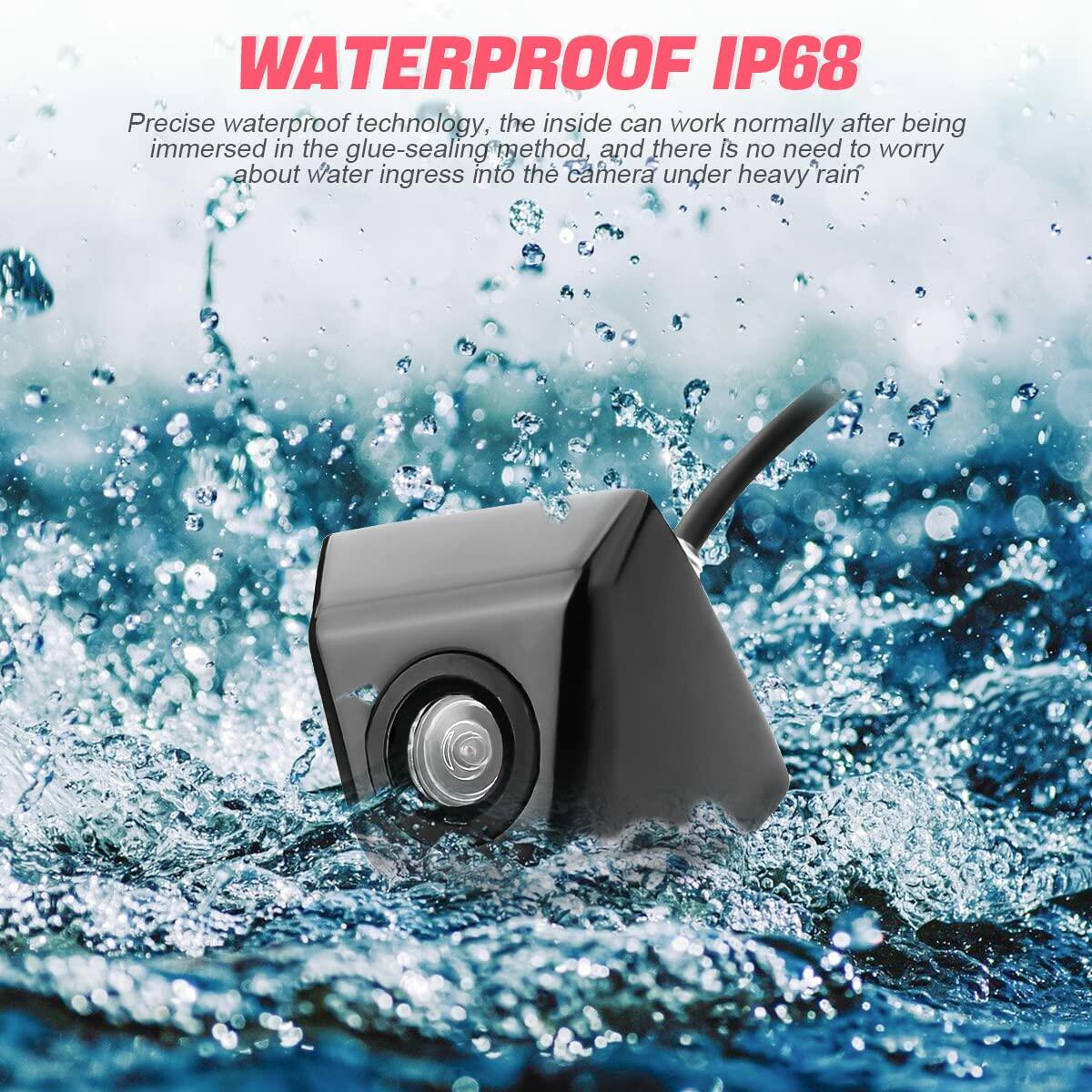

• RELIABLE QUALITY & IP68 RATED WATERPROOF - Upgraded material and waterproof grade. Our backup cameras are made of high-quality zinc alloy shell, long service life, not cheap plastic or other material. Entire camera body is filled with waterproof silicone rubber material, we've tested every camera underwater for 24 hours, it will work well under extreme conditions, no matter in heavy rain or snow day.

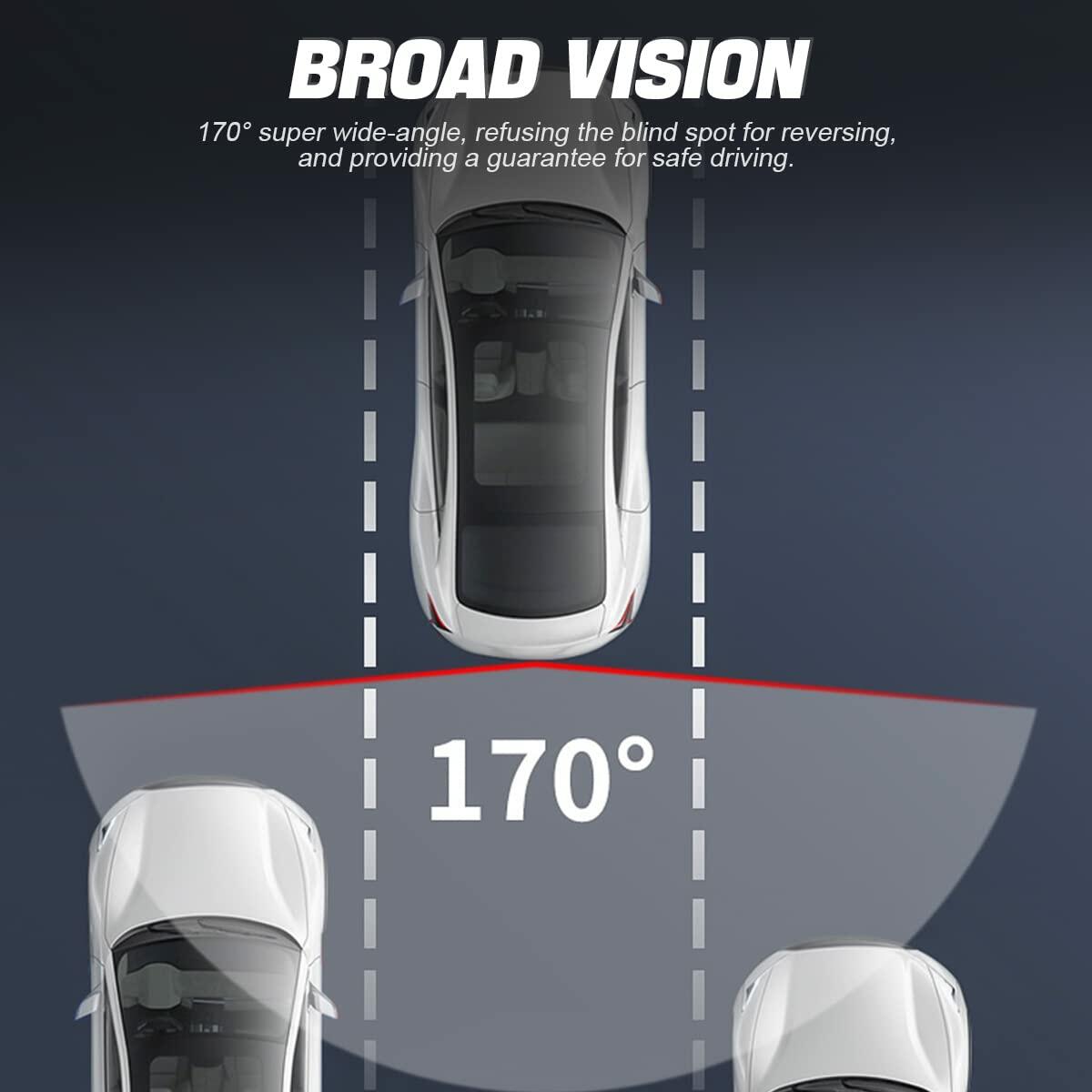

• 720P HD CAR BACKUP CAMERA - 4089T CCD image sebsor, 960*720 Pixels, 0.01 flux, features shockproof, which provides more stable vedio signal, 155 degree wide viewing angle, support high-definition night vision image, help you to observe situations behind your car more clearly when reversing and parking, avoid friction and bumps, increase safety as well!
• MOVABLE DISTANCE GUIDELINE - Distance guideline can help you to reverse and park car more safely and accurately. Our backup camera applys new chip which can show the track guide without any additional devices, guideline will change automatically according to cars movement, no need to worry about reversing and parking your car anymore.

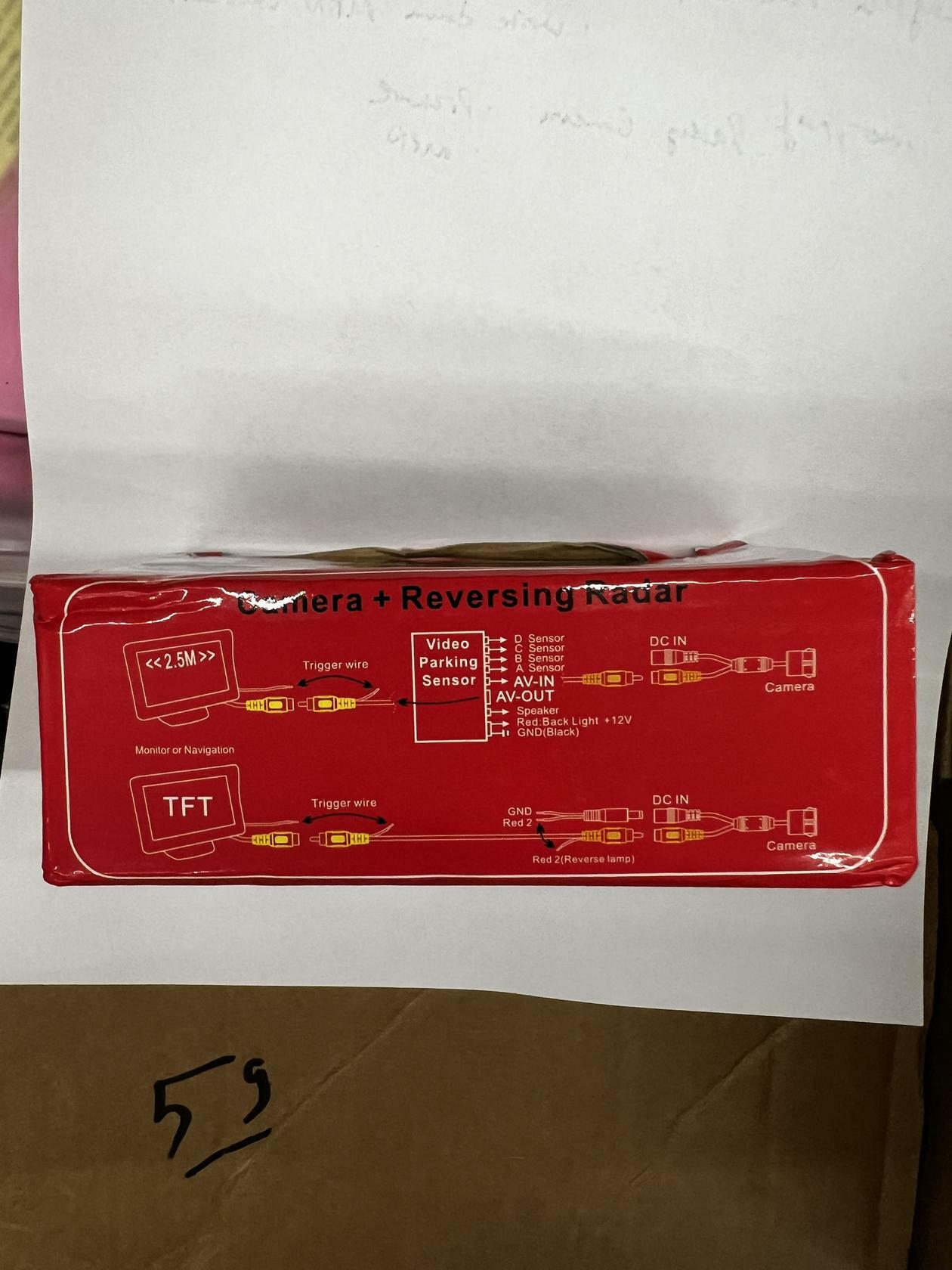

• WORKING WITH MONITORS SUPPORT RCA CONNECTION - Our backup camera only support RCA connection with monitor. For normal mirror monitors or TFT monitors, trigger detection cable is not required. Please remember to connect the trigger wire when it works with a radio head unit.
• WIDE COMPATIBILITY - Small size and lightweight, camera only measures 1.25 x 1.37 x 1.06" (L x W x H), almost hidden after installation, it should be installed in hanging mounted method as photo shows. Fit most types of 12-24V, Universal for most cars, pickup trucks, vehicles, SUV, vans, RVs, etc.
