GLOSO 60A E9T Single Pole Thermal Circuit Breaker Manual Reset Automotive

GLOSO E9T Hi-Amp Circuit Breakers:  60A @ 48 Vdc - 1 Pack

Reset Type:  Type 3 Manual Reset with Recessed Push to Disconnect Button

Operating Temperature Rating:  –25°F (–32°C) to 180°F (82°C)

Storage Temperature Rating:  –30°F (–34°C) to 300°F (149°C)

Materials:  Black UL-Rated 94V-0 thermoplastic thermoplastic elastomer stud insulators are provided on covered units with surface mount style

Marking:  Standard marking includes Amp Rating and date code

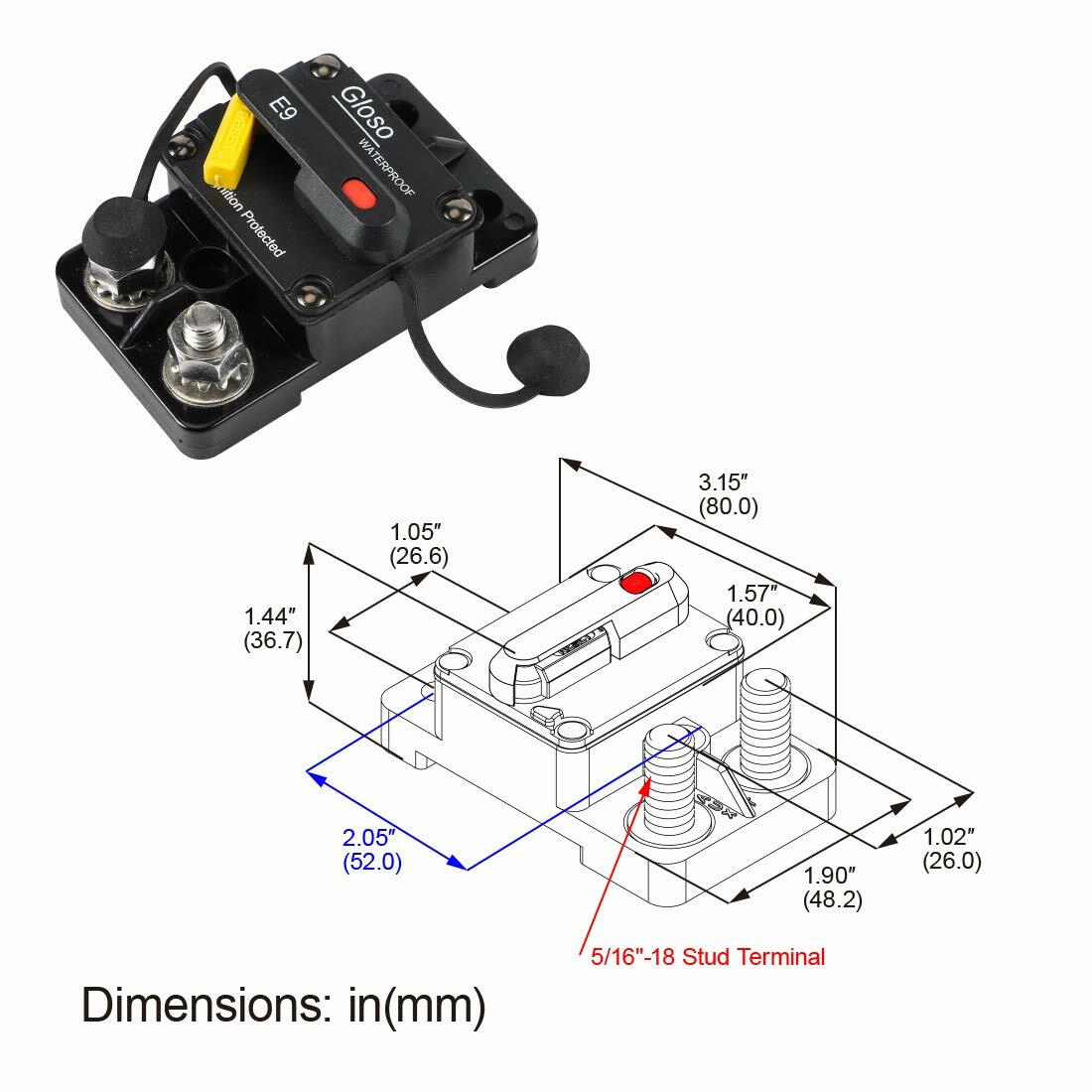

Termination:  5/16"-18 threaded studs

Compliances:  SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*

FEATURES

• 60A; 5/16"-18 threaded side by side studs, Extended Surface Mount

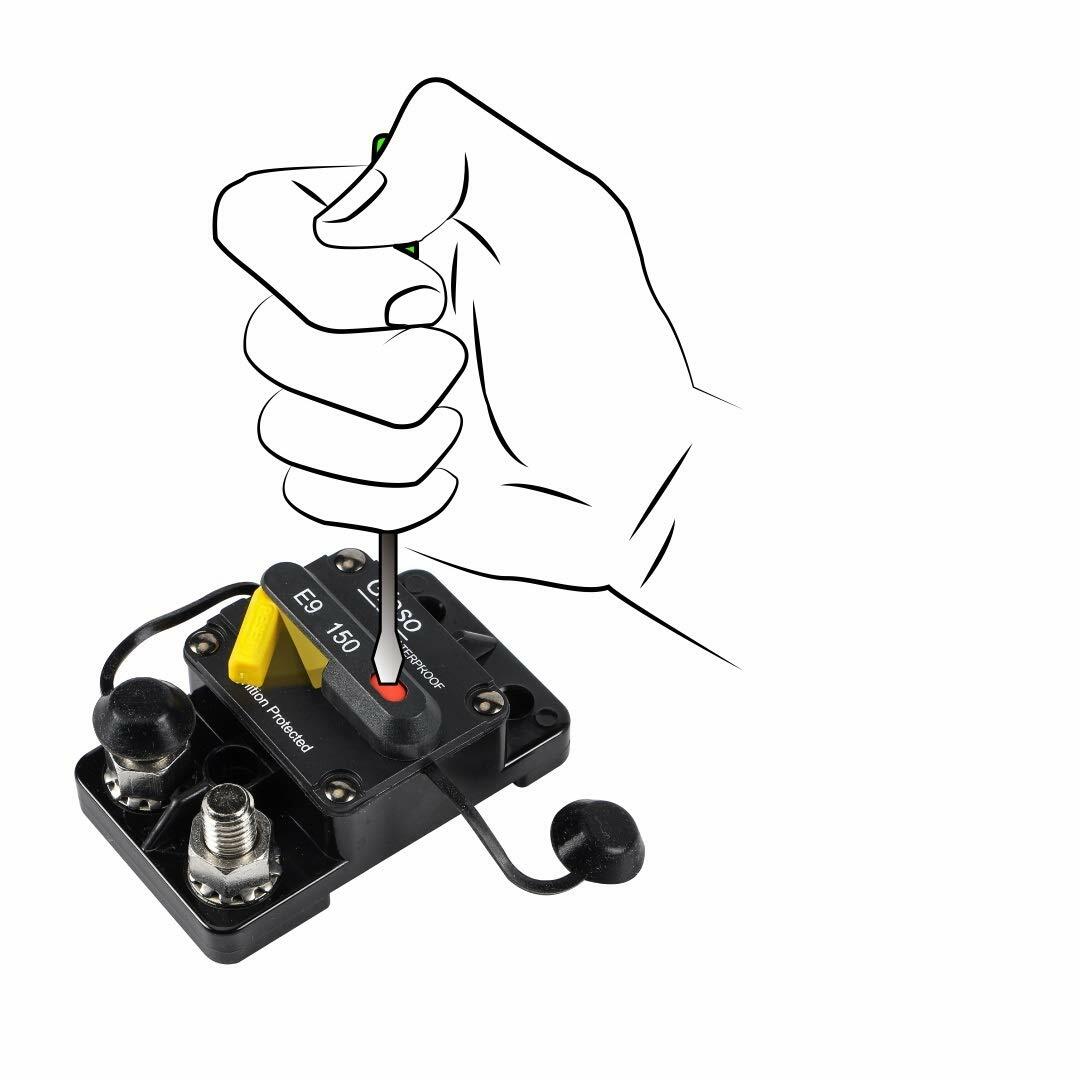

• Tool required to disconnect the circuit manually via recessed button
• IP67 Waterproof Rated & Ignition Protected
• Type 3 Manaul Reset with Recessed Push Button
• Compliances: SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*
