Typical applications：Ignition lock Lamp load (headlights) Cooling fan ABS Exhaust emission control Cross carline up to 60 A Fuel pump Engine cooling fan A/C blower A/C compressor clutch Also available for 42 Vapplications.
The values apply to a resistive or inductive load with suitable spark suppression and at maximum 14 V for 12 V or 28 V for 24 V load voltages.
All parametric, environmental and endurance tests are performed according to EIA Standard RS-407-A at standard test conditions.

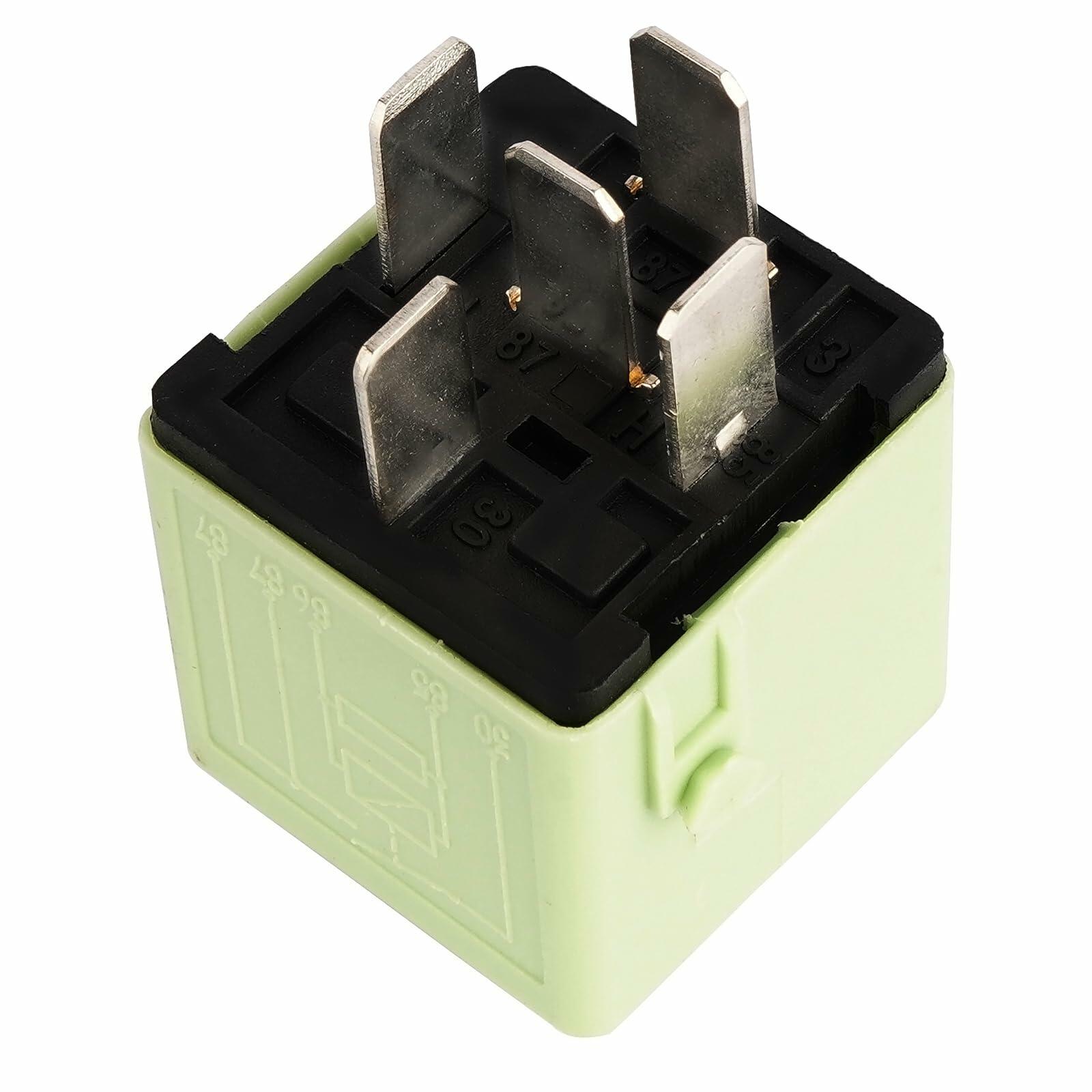

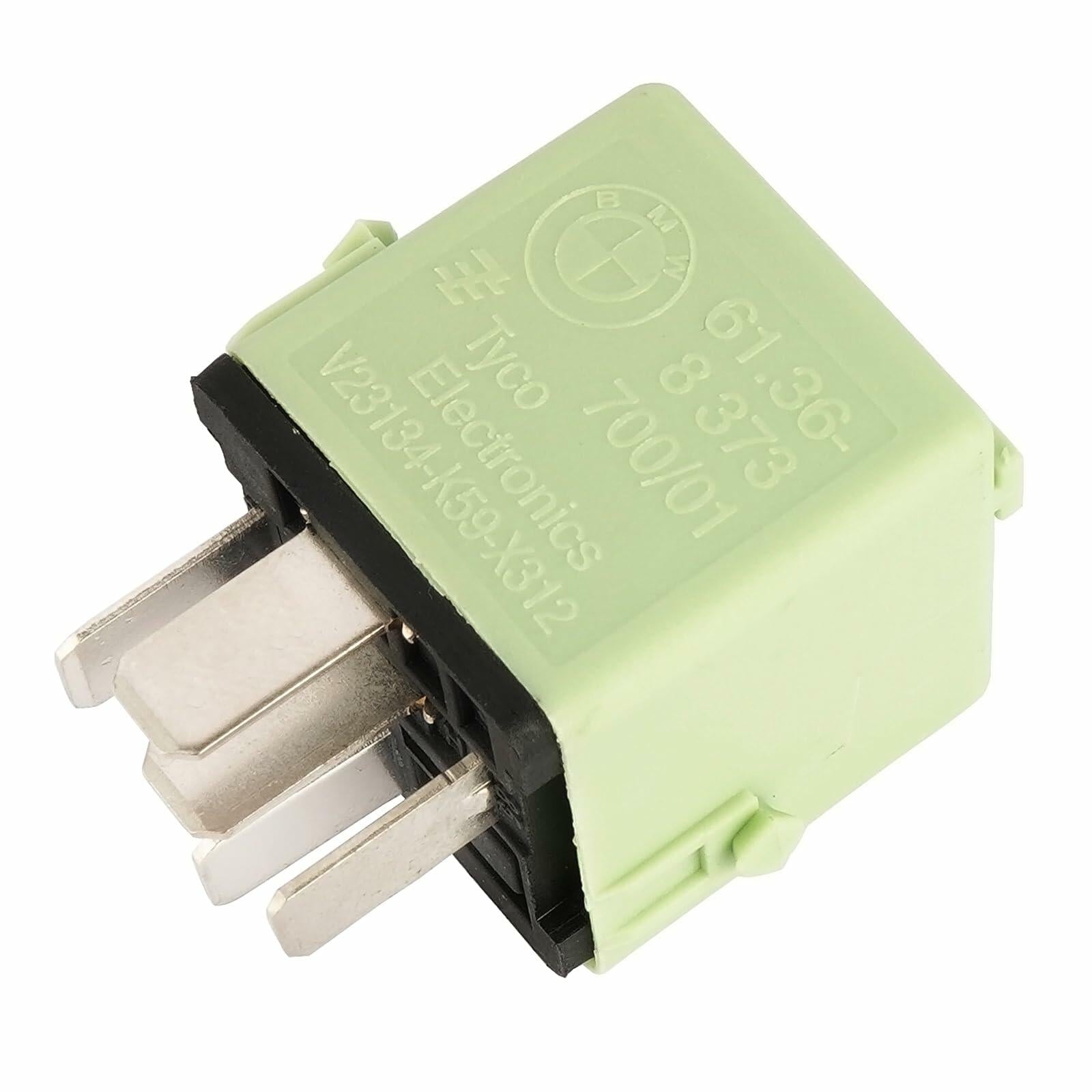

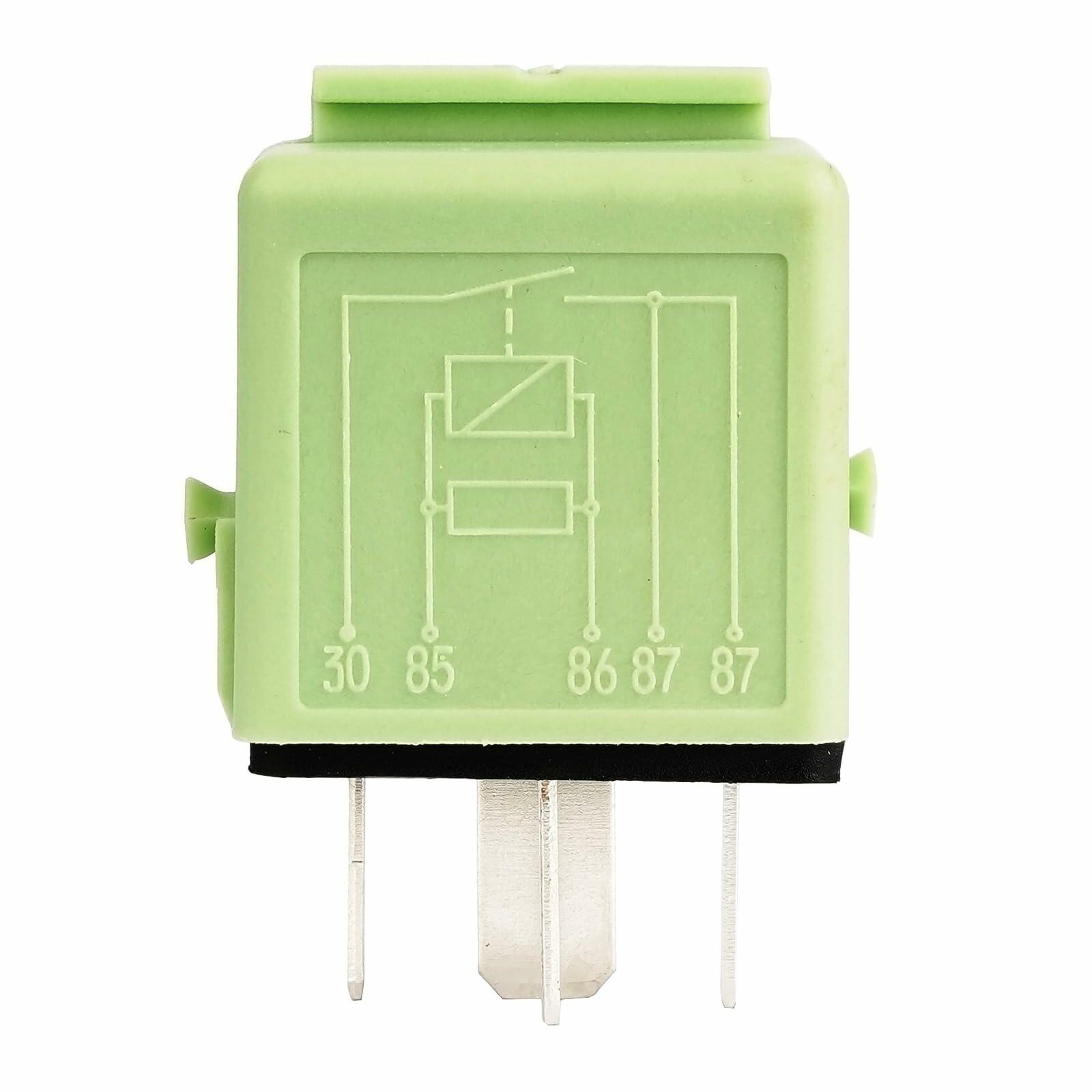

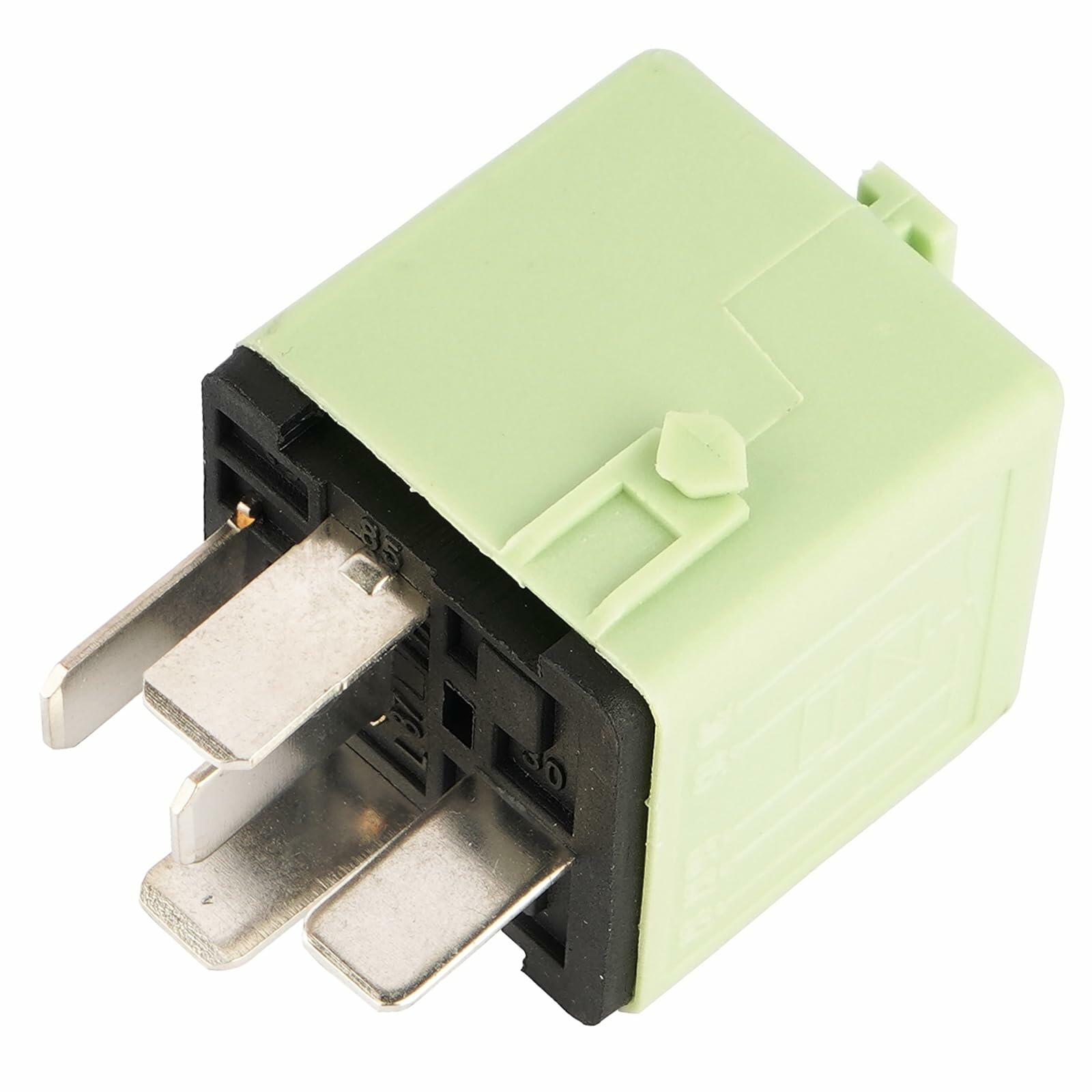

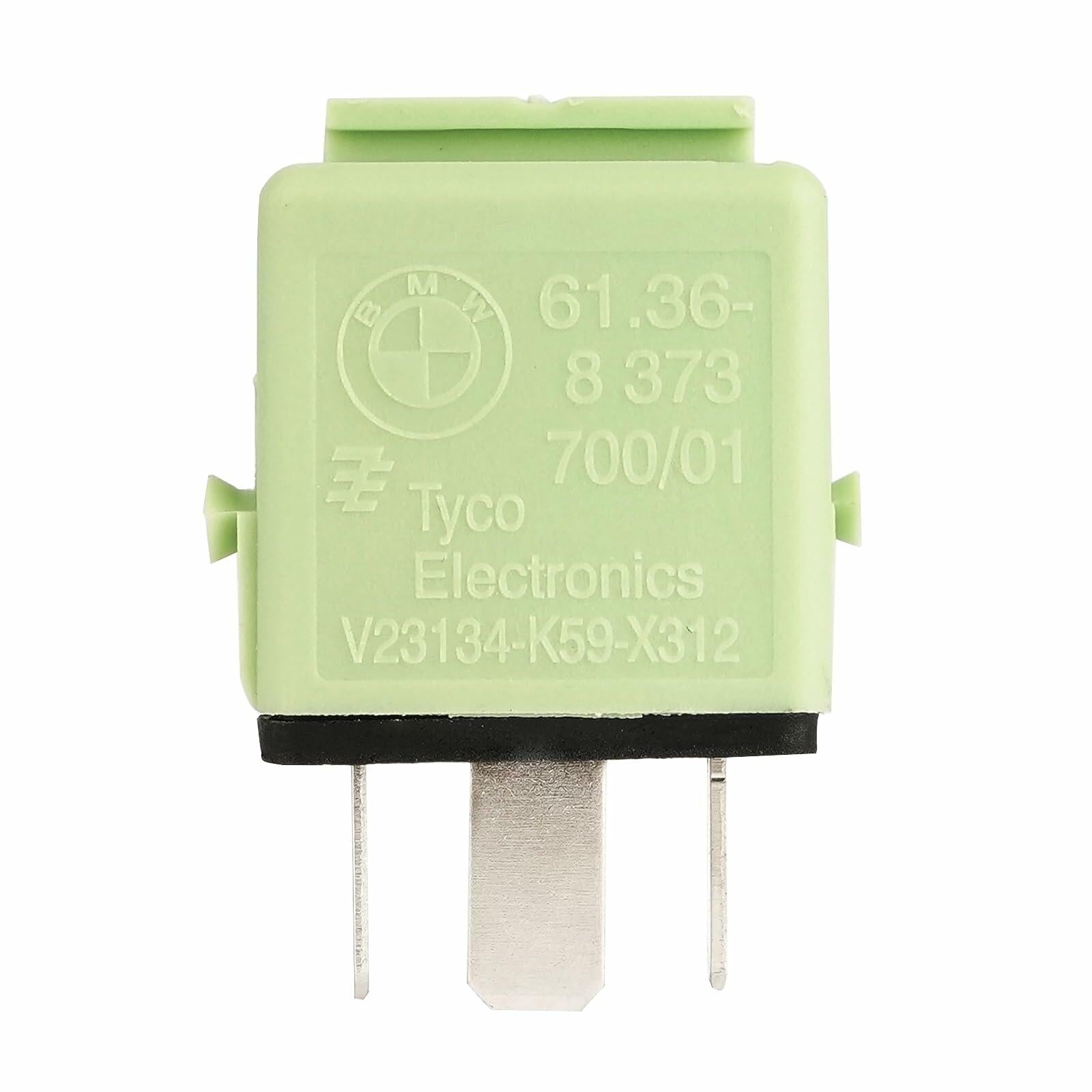

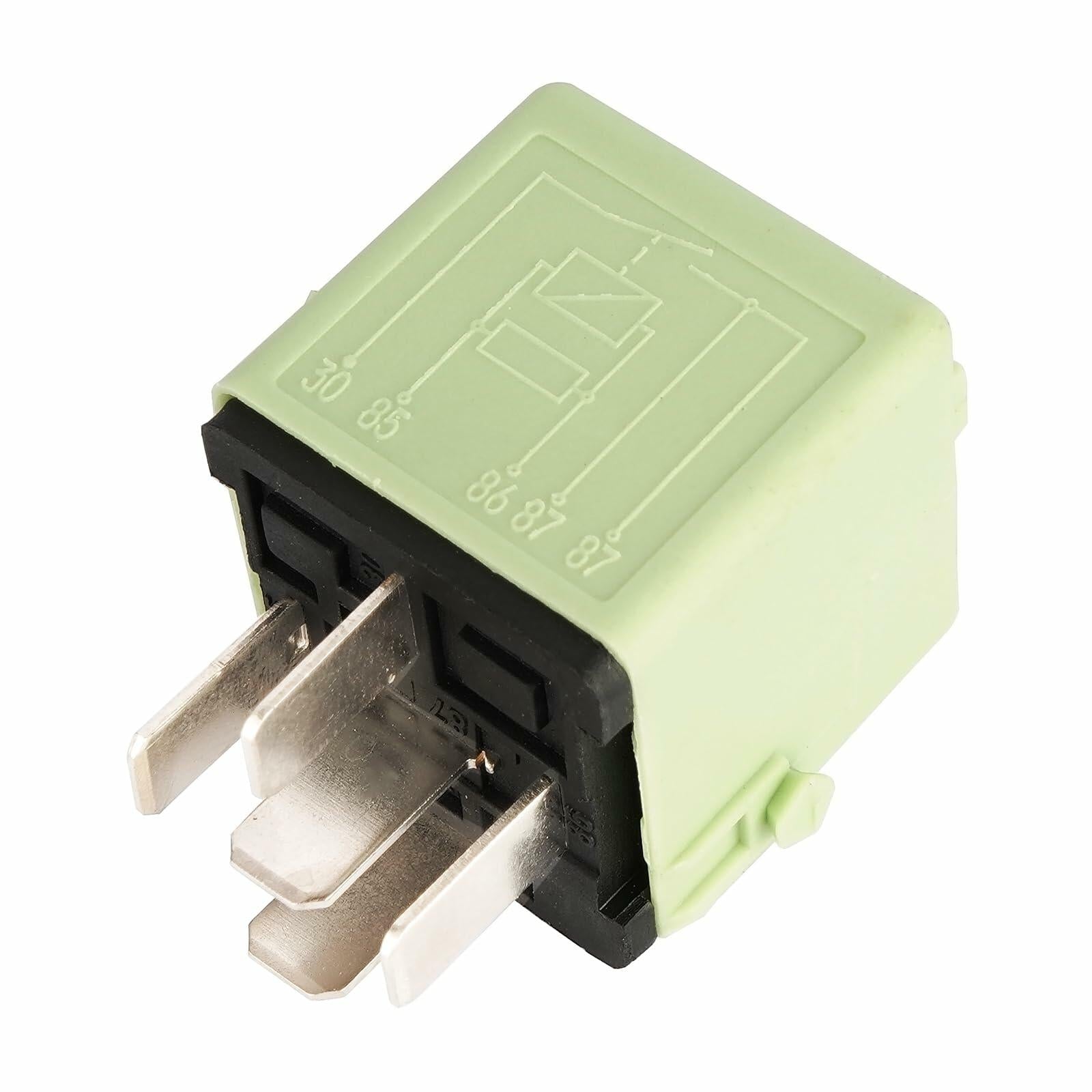

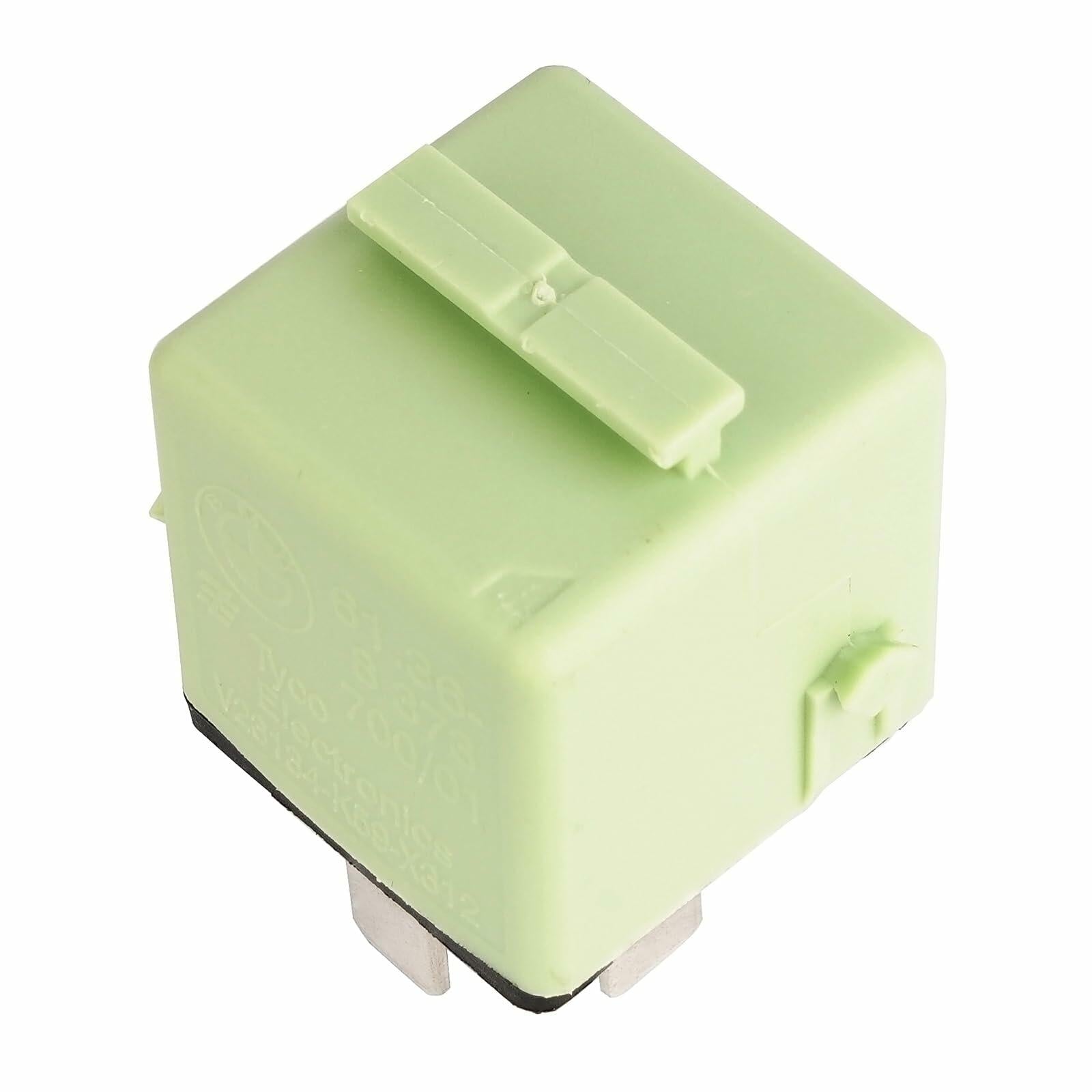

Package Content: 1 x V23134-K59-X312 61.36-8 373 700/01
Attention:
Do not use the relay exceeding the coil rating, contact rating and life expectancy, or this may cause the risk of overheating.
FEATURES
Limiting continuous currents 60/40A at the NO/NC contacts.

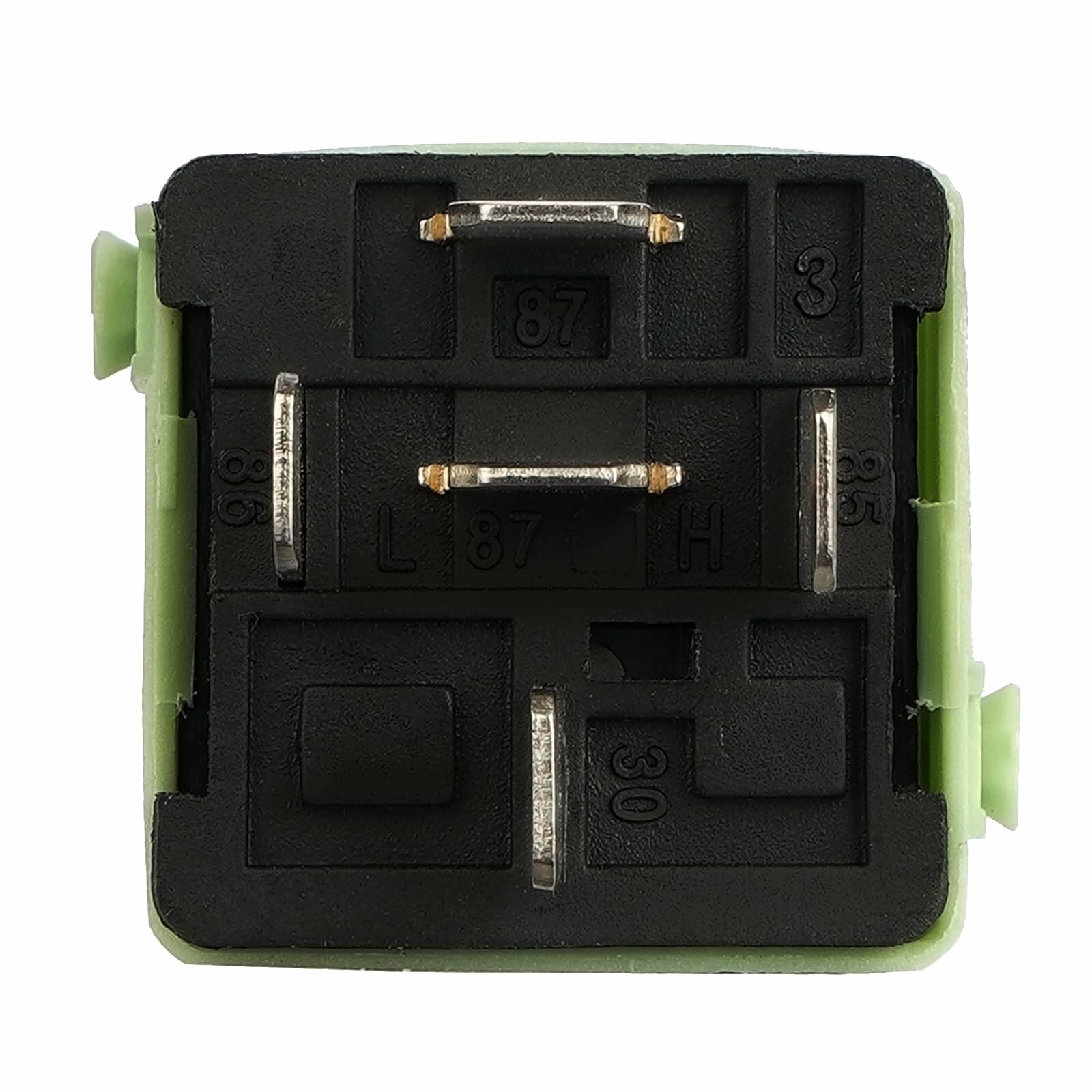

Dimensional characteristics and the functional allocations of the plug-in terminals to ISO 7588 part 1.
12VDC versions with contact gap > 0.8 mm.
Typical applications: Ignition lock Lamp load (headlights) Cooling fan ABS Exhaust emission control Cross carline up to 60 A Fuel pump Engine cooling fan A/C blower A/C compressor clutch Also available for 42 V applications.
