YOMIRACING 6AN Male to AN6 Male Flare Adapter Coupler Black Pack of 2

Product Description

SPEC:

Size:6AN-6AN

Brand:YOMIRACING

Color:Black,Straight-2pcs

Material: 6061-T6 Aluminum Alloy

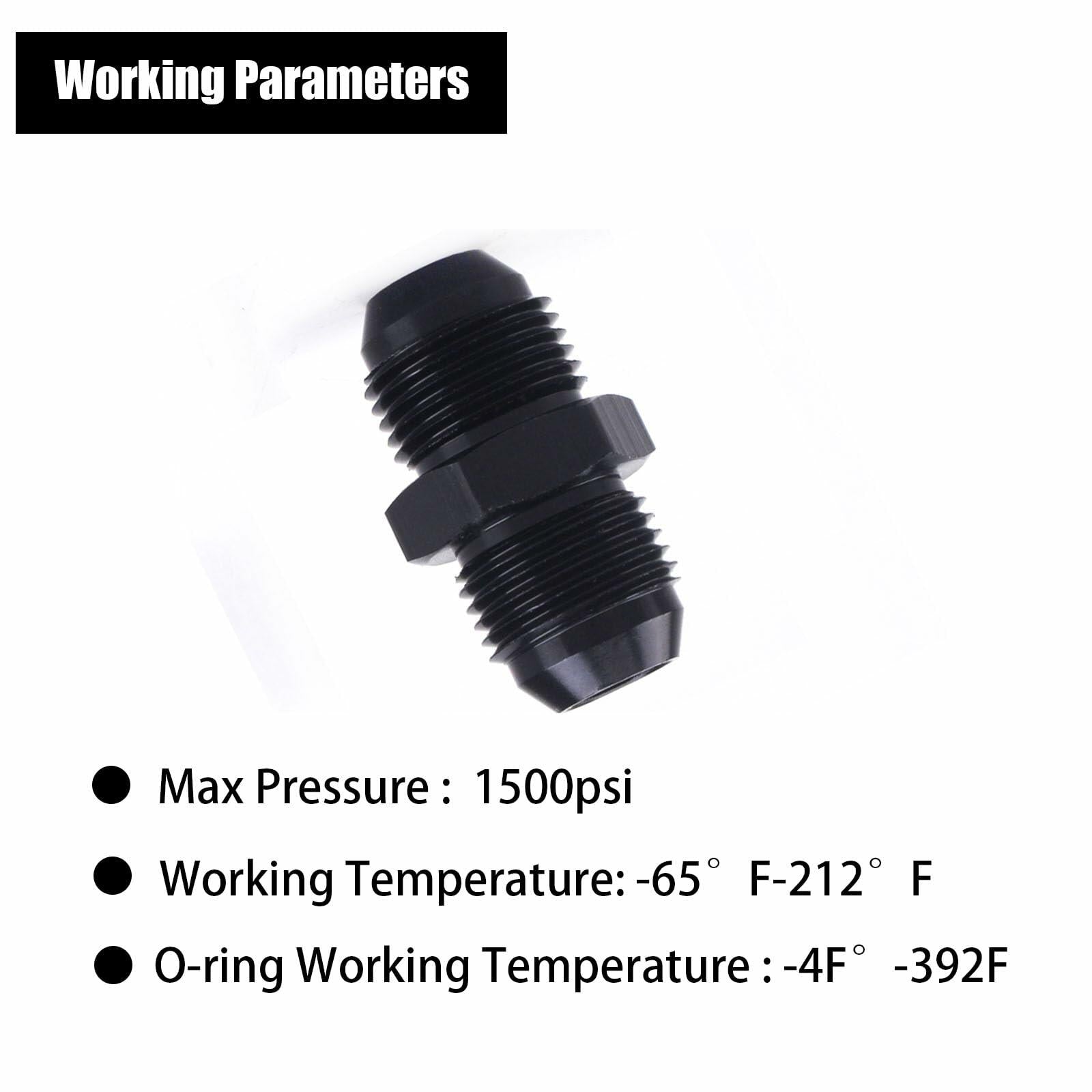

Max Pressure:1500PSI

Working Temperature:-65°F to 212°F

O-ring Working Temperature:-4°F to 392°F

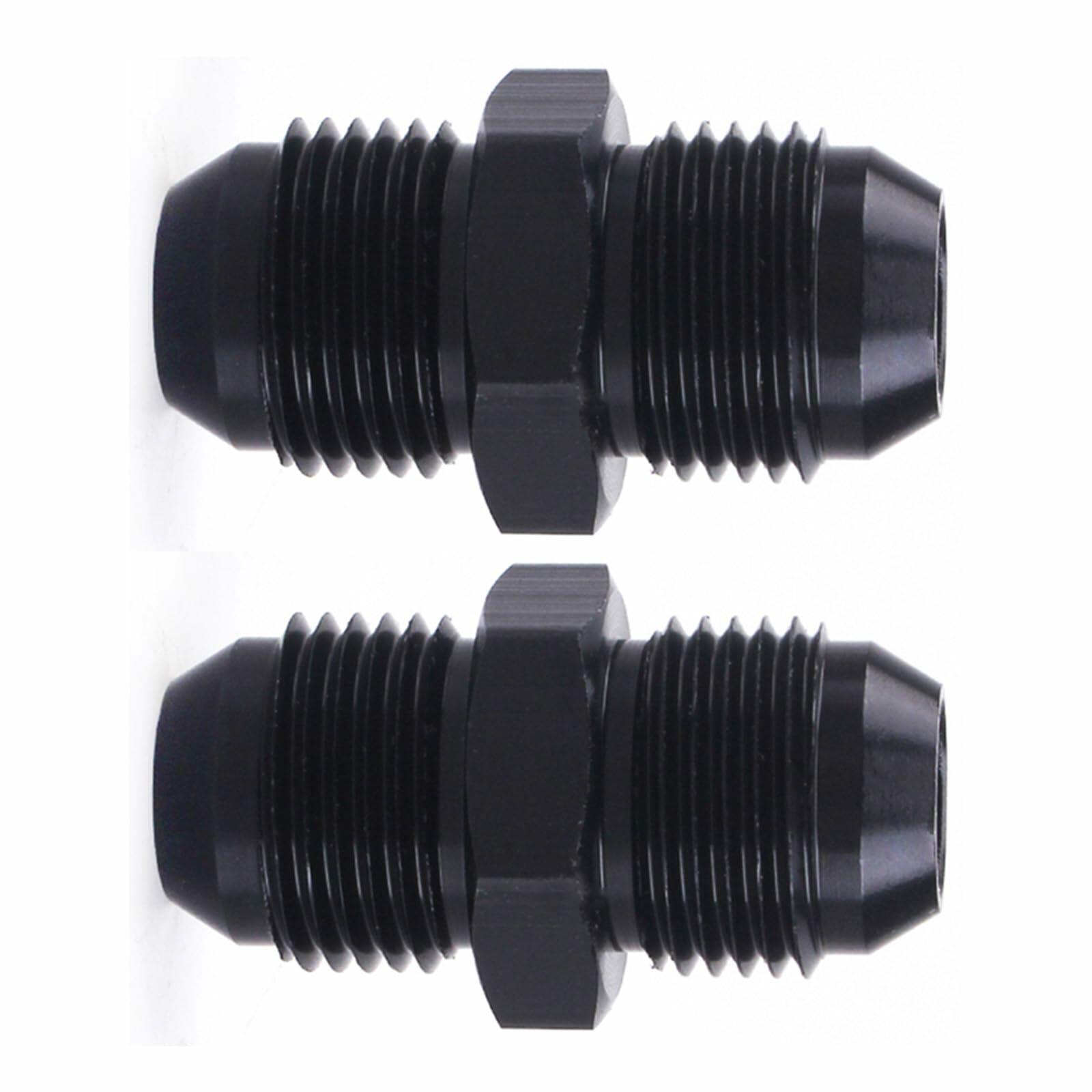

Inclusive kit:2 black automotive fuel connectors

About this item :

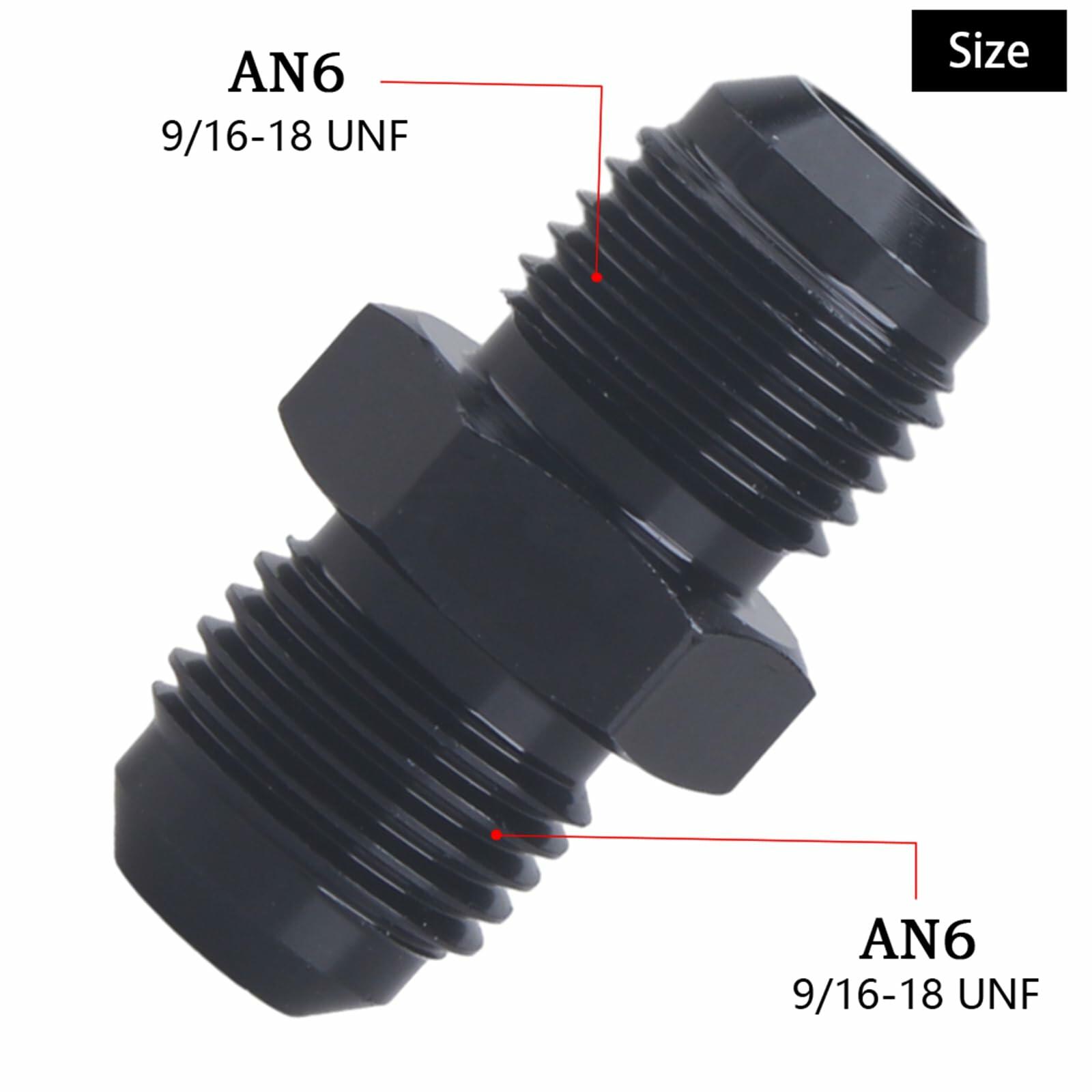

Thread sizes for 6AN  and 6AN are 9/16-18 UNF

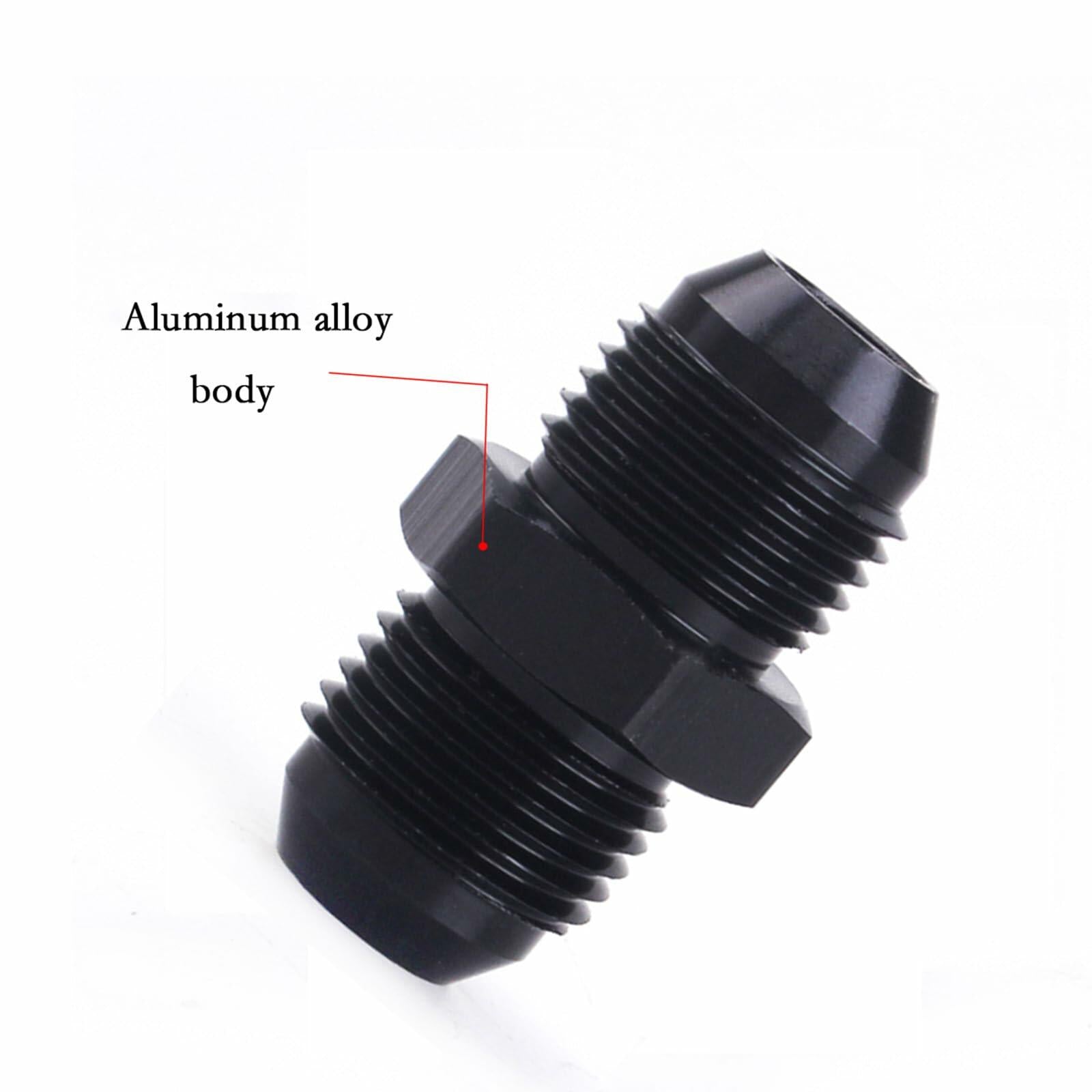

Features a 6061-T6 aluminum alloy body and NBR rubber o-rings.

The AN side of the flare is sealed with a 37-degree angle seal .

Max working pressure is 1500PSI and working temperature range is -65°F-252°F and O-ring working temperature range is  -4°F-392°F.

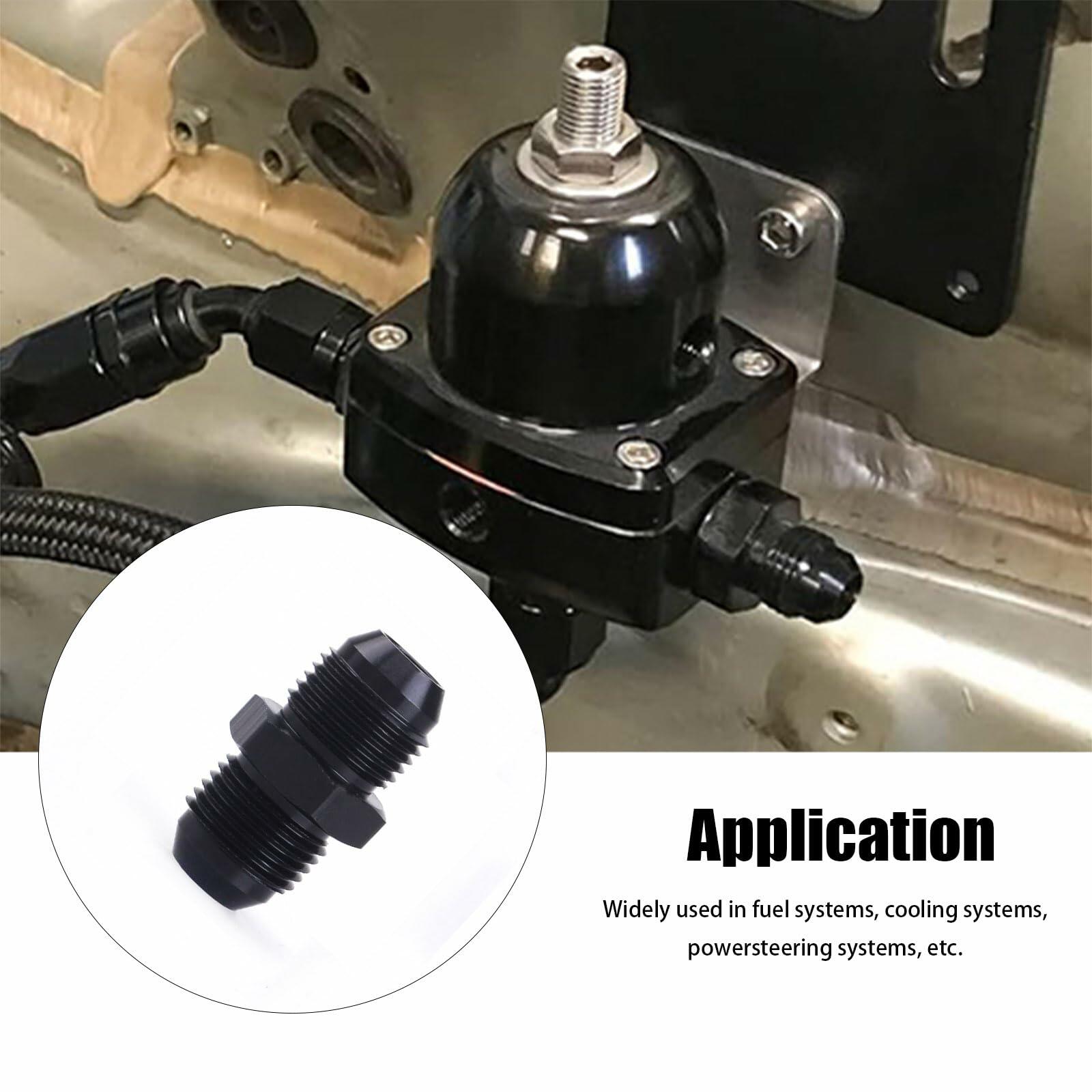

oil cooler，Suitable for fuel rail，fuel pressure regulator，fuel filter， fuel pump，power steering system，and so on

FEATURES

• 【Size】：Thread sizes for 6AN and 6AN are 9/16-18 UNF.
• 【Material】：Features a 6061-T6 aluminum alloy body.
• 【Sealing】：The AN side of the flare is sealed with a 37-degree angle seal.
• 【Parameter】：Max working pressure is 1500PSI and working temperature range is -65°F-252°F and O-ring working temperature range is -4°F-392°F.
• 【Application】：oil cooler，Suitable for fuel rail，fuel pressure regulator，fuel filter， fuel pump，power steering system，and so on
