Nominal Coil Voltage: 12 VDC

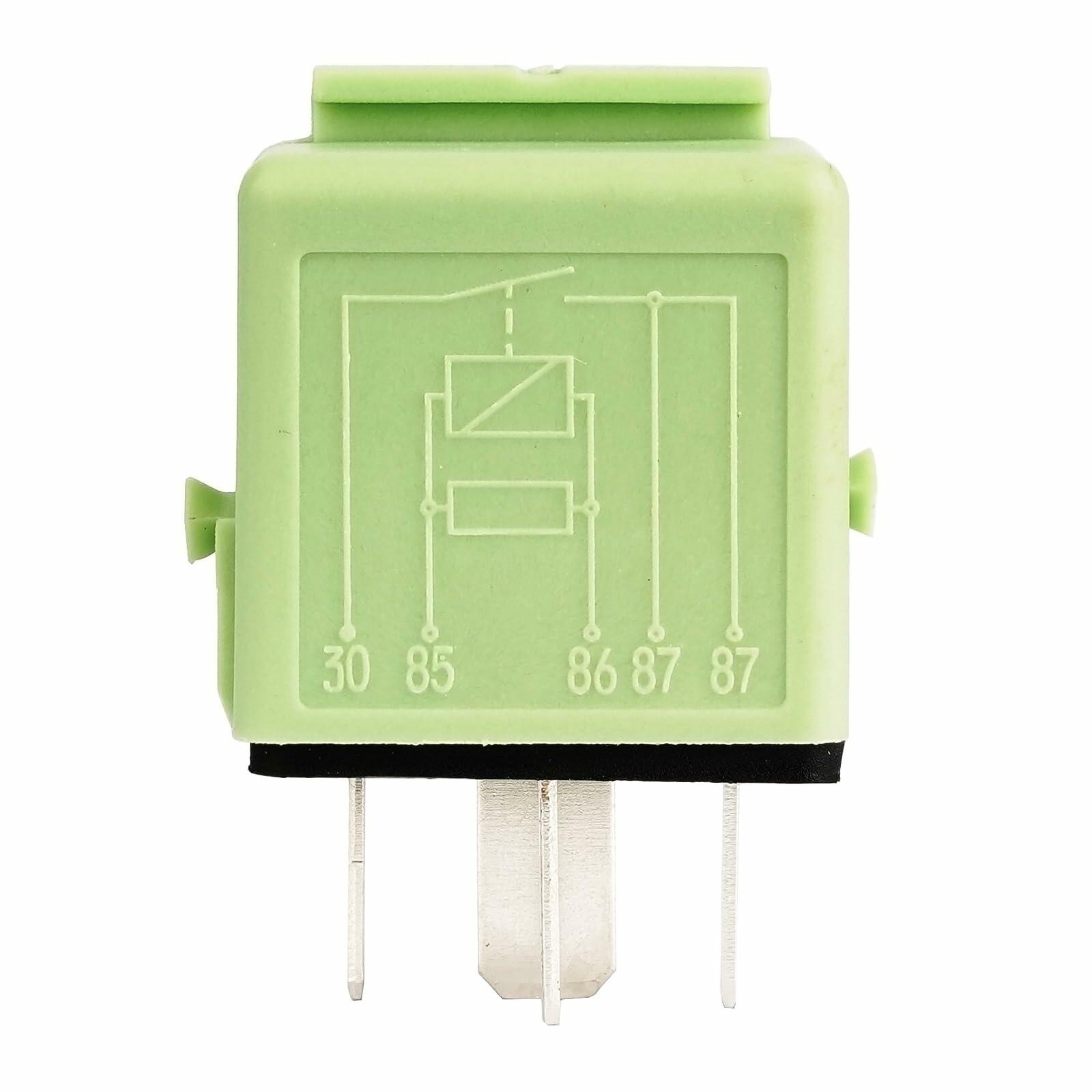

Contact Form: 1 form A (2 x pin 87)

Rated current:40A

Contact material:AgNi0.15

Weight Approx: 1.2 oz. (35 g)

Typical applications：Ignition lock Lamp load (headlights) Cooling fan ABS Exhaust emission control Cross carline up to 60 A Fuel pump Engine cooling fan A/C blower A/C compressor clutch Also available for 42 Vapplications.

The values apply to a resistive or inductive load with suitable spark suppression and at maximum 14 V for 12 V or 28 V for 24 V load voltages.

All parametric, environmental and endurance tests are performed according to EIA Standard RS-407-A at standard test conditions.

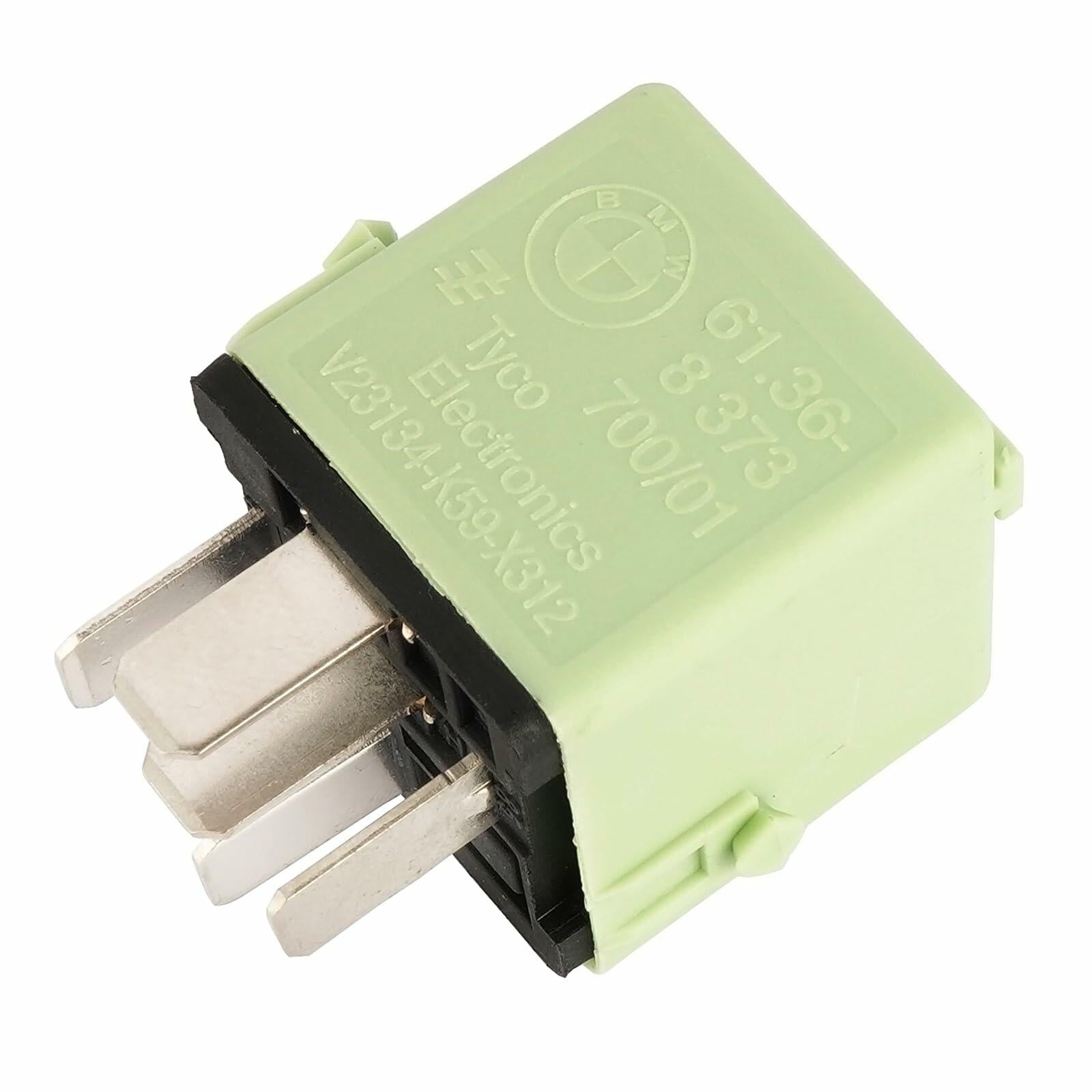

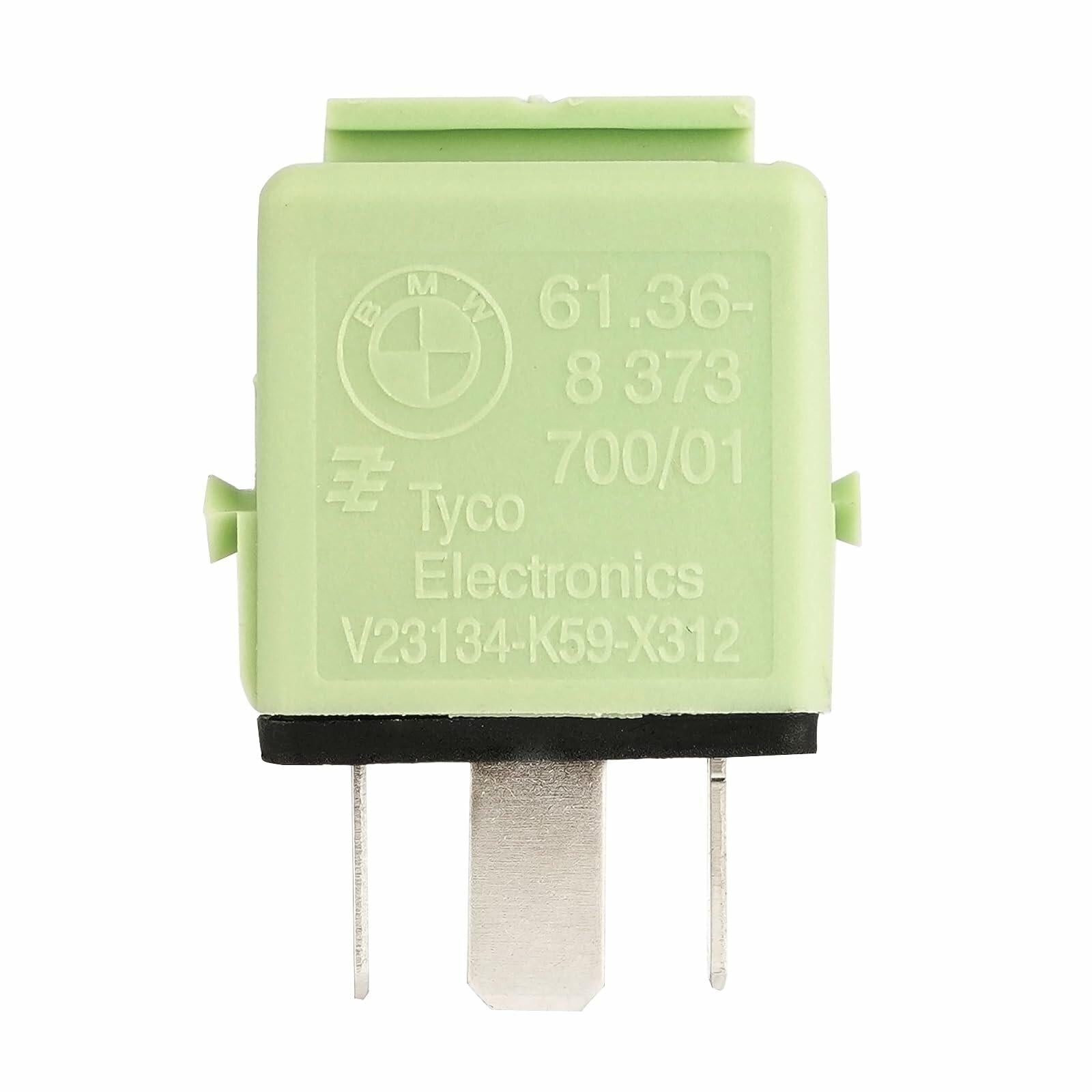

Package Content: 1 x V23134-K59-X312  61.36-8 373 700/01

 Attention:

 Do not use the relay exceeding the coil rating, contact  rating and  life expectancy, or this  may cause the risk of overheating.

FEATURES

• Limiting continuous currents 60/40A at the NO/NC contacts.
• Dimensional characteristics and the functional allocations of the plug-in terminals to ISO 7588 part 1.
• 12VDC versions with contact gap > 0.8 mm.
• Typical applications: Ignition lock Lamp load (headlights) Cooling fan ABS Exhaust emission control Cross carline up to 60 A Fuel pump Engine cooling fan A/C blower A/C compressor clutch Also available for 42 V applications.
• Package include: 1 pack electrical relays.
