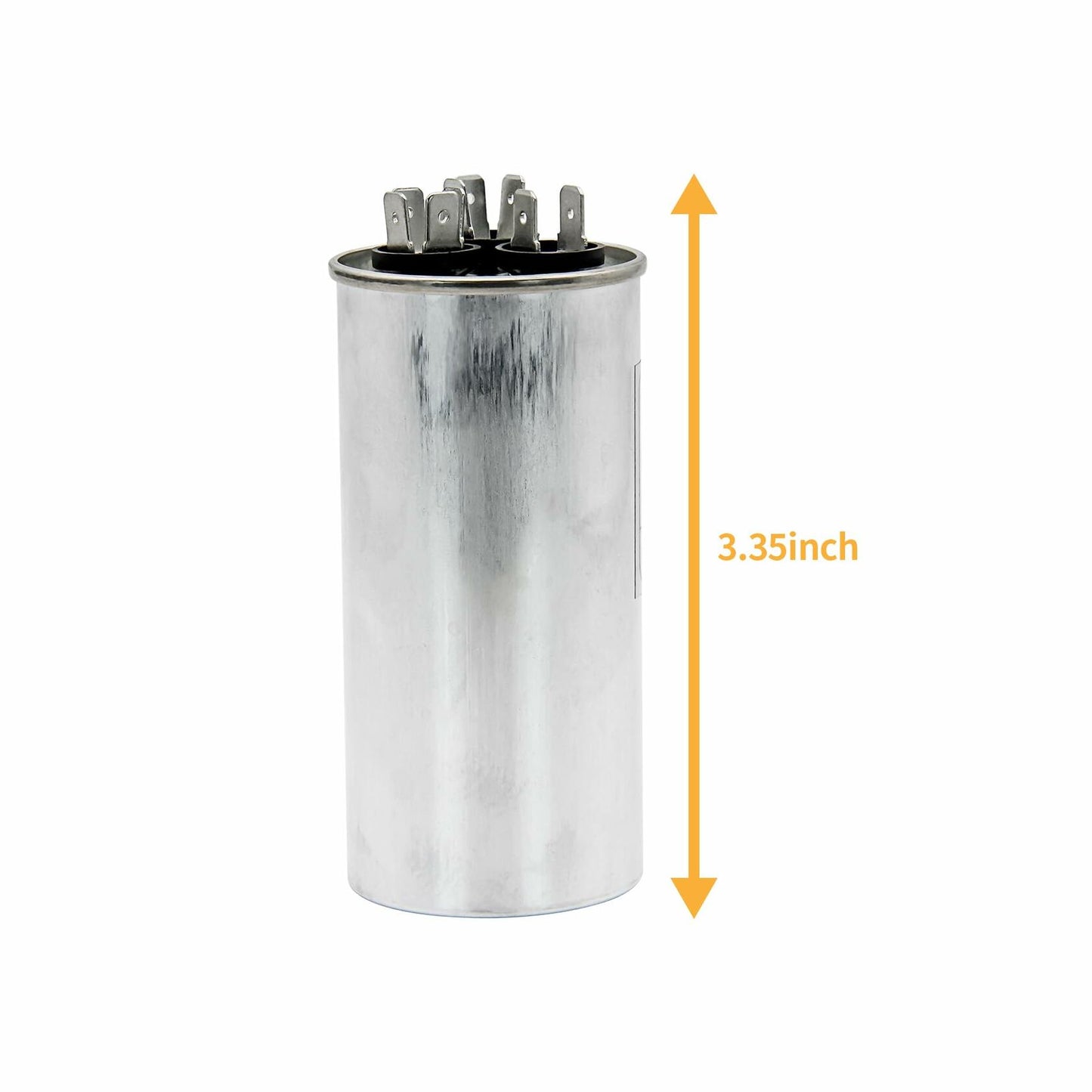

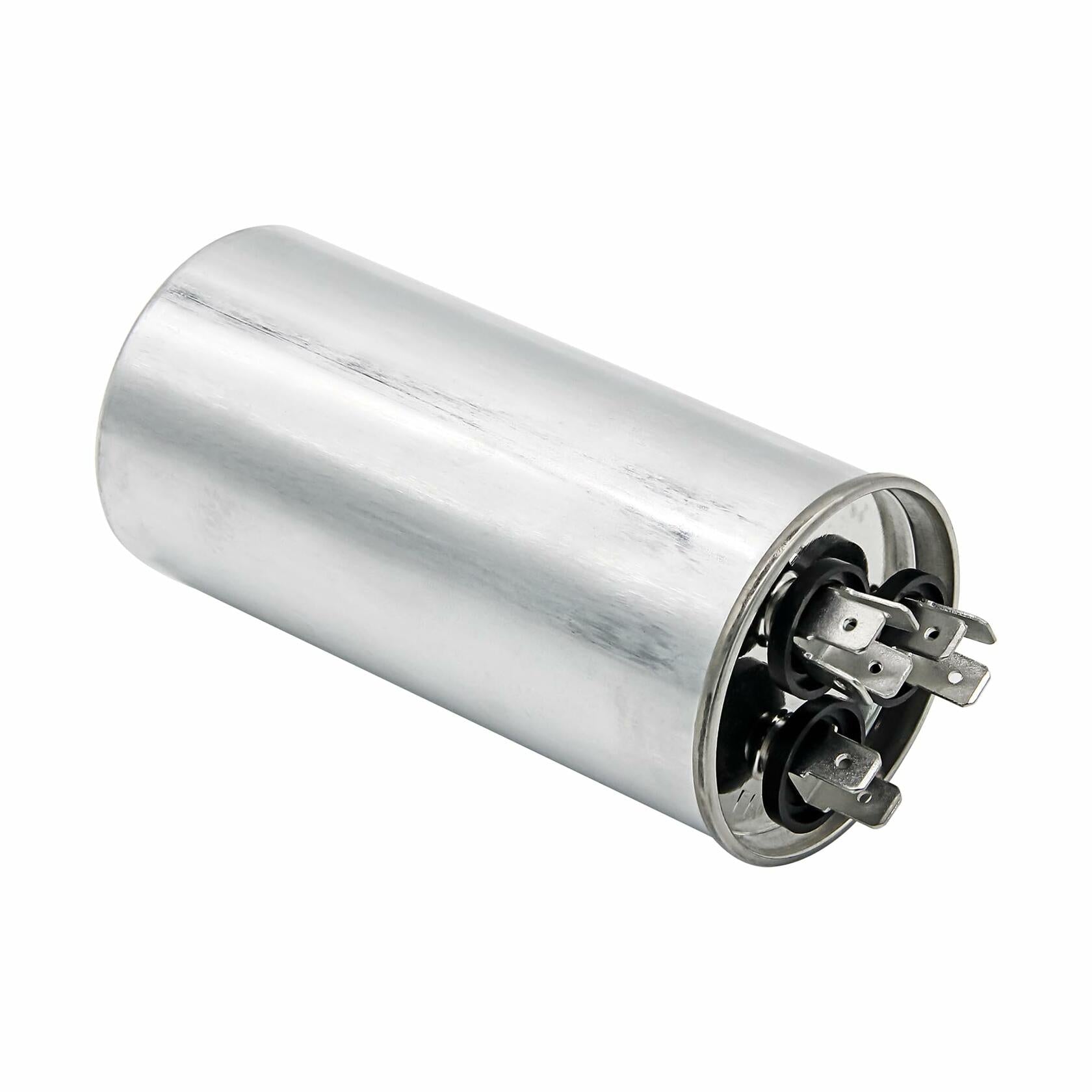

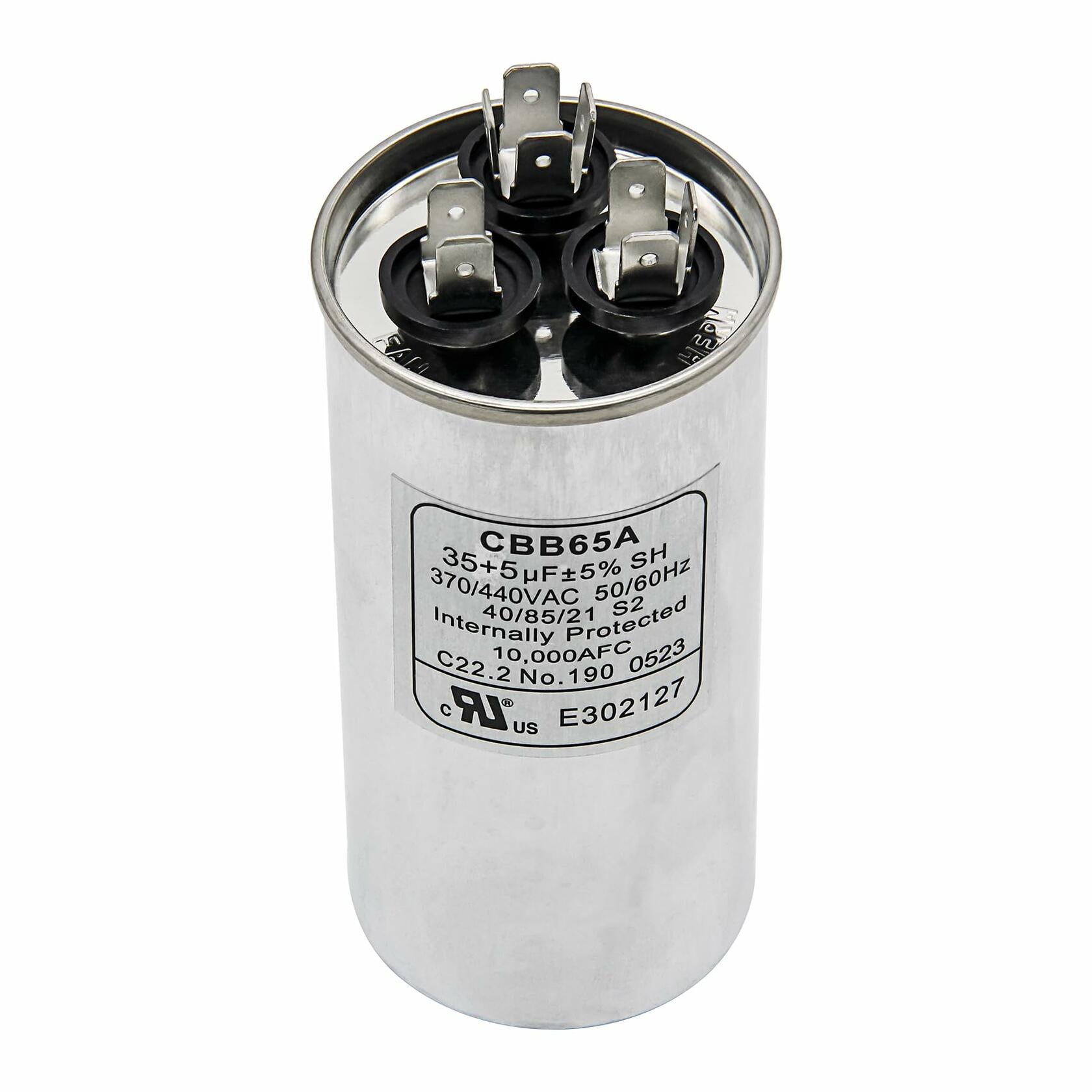

Denkuhin CBB65 Dual Run Capacitor 35+5uF 370/440VAC Air Conditioner Motor

Denkuhin 35+5 uF 5% MFD CBB65 C3355R Dual Run Round Capacitor 370/440 VAC Compatible with Heat Pump Air Conditioner, Condenser Straight Cool AC Motor Run

Model Application:

Fit for: 97F9834,Z97F9834,HC98JA036P291-3553R,HC98CA036,HV98CA035 ,97F9834,R100335-05,89M73,HC98JA036D TT-CAP. 35/5/440R,12283,Z97F9848,Z97F9899 ,97F9899cap050350440rs,12266,TP-CAP-35/5/440RRCO102,TRCFD355

Product Specification:

Model: 35/5UF

Rated voltage: 370V / 440V AC

Rated frequency: 50/60Hz

Capacitance tolerance: 5%

Operating temperature: -40'c to 70

Loss tangent: 0.002 (100Hz)

Voltage between poles: 2Un 60s

Pole shell withstand voltage: 2000V 60s

Insulation resistance: RC3000M QF

Welcome to Denkuhin Store

We focus on providing customers with different home accessories and outdoor supplies, the quality is through our control, it can solve some machine problems in any time for you.

If you got any product quality problems or other issue, you can contact us directly, we will do our best to solve for you.

FEATURES

• What you got: 35+5 uF ±6% Dual Run Round Capacitor, Repalce for C3355R
• Product Specification: Rated voltage: 370V / 440VAC,Capacitance tolerance: ± 5% . Operating Temperature: -40 ℃ to +70℃

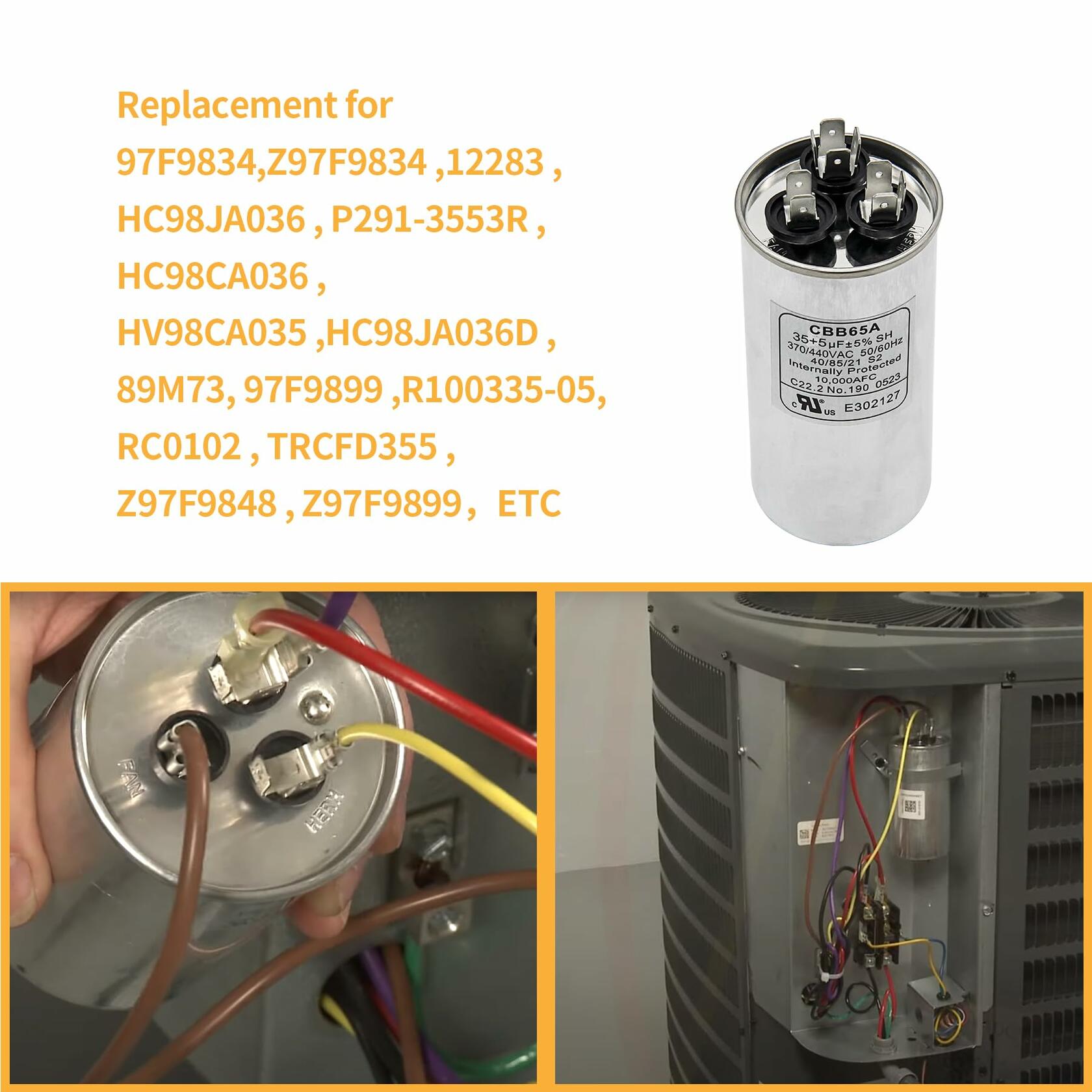

• Capacitor Replacement for 97F9834, Z97F9834, Z97F9848, Z97F9899, 97F9899,97F9834,12283, 12266,HC98JA036, HC98CA036, HV98CA035, P291-3553R, R100335-05, 89M73, HC98JA036D, TT-CAP-35/5/440R, RC0102, TRCFD355, CAP050350440RS.

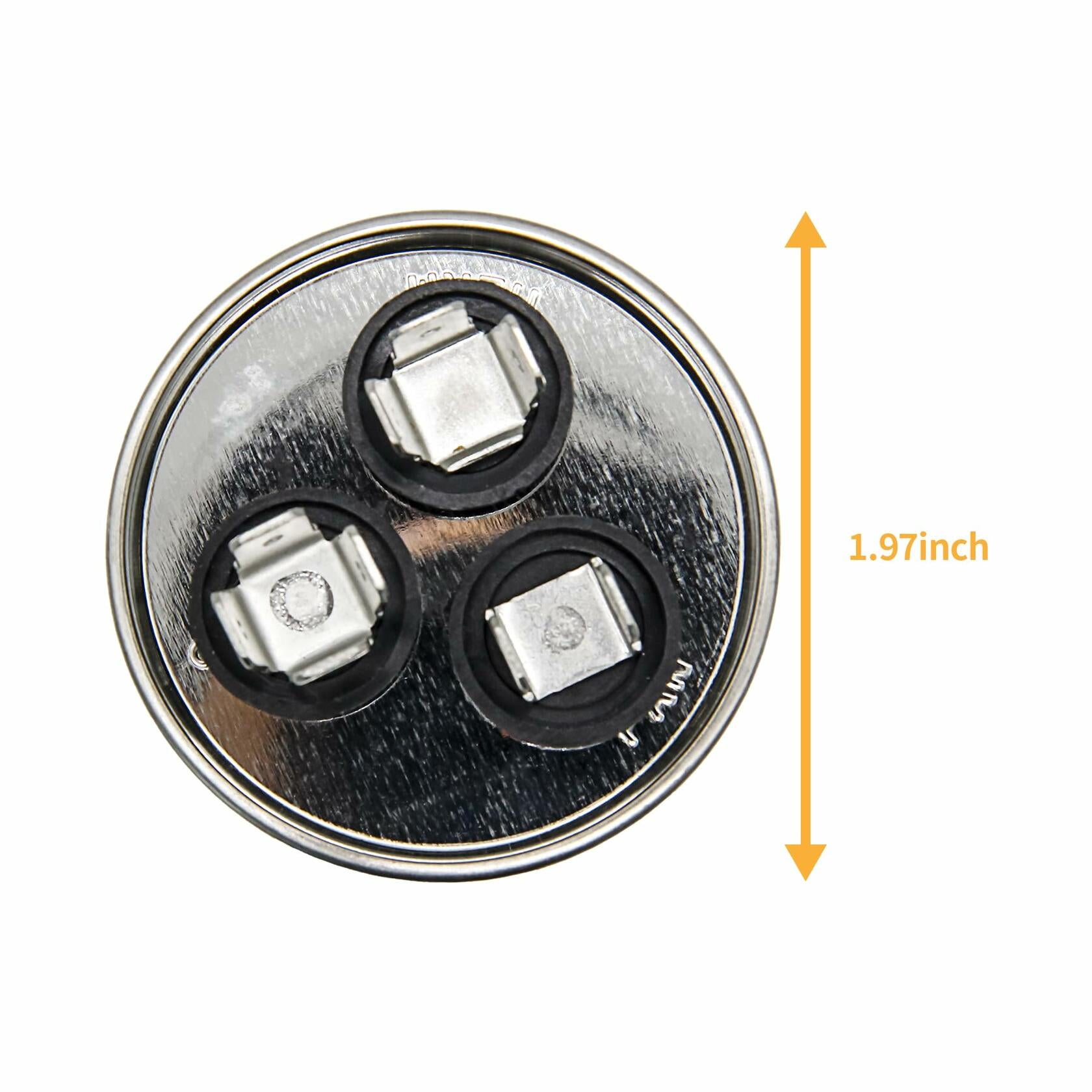

• 35+5uf Capacitor has three terminals on the top are labeled "Herm"/"H" for connecting to hermetically sealed compressor, "Fan"/"F" for connecting to the condenser fan motor, and "C" for connecting the common line.
• This AC Capacitor is made of high quality Aluminum material, avoiding the problem of short life and fast wear, which also safe and reliable, so that your machine can continue working efficiently
